CPI160809UF-1R0M-0A7
lmages are for reference only.CPI160809UF-1R0M-0A7
IND 1UH 0.2OHM 750MA
Datasheet0603 (1608 Metric)
75,255 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Unshielded Inductor 750 mA 200mOhm Max 0603 (1608 Metric)
CPI160809UF-1R0M-0A7
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | CPI160809UF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 750 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|

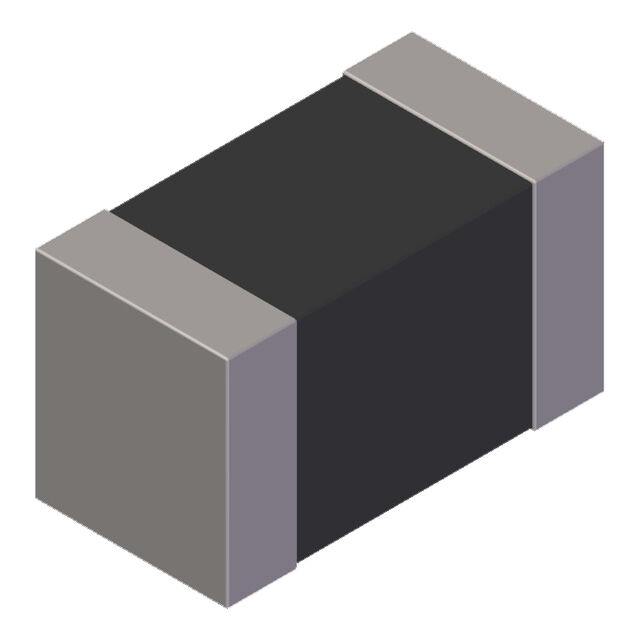

| Part Number | CPI160809UF-2R2M-0A6 | AMDLA1707S-6R8MT | 1210-123K | 5500R-224K |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | Abracon LLC | Delevan | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IND 2.2UH 0.3OHM 650MA | FIXED IND 6.8UH 24A 7.2MOHM SMD | FIXED IND 12UH 272MA 2.5 OHM SMD | FIXED IND 220UH 2.48A 162MOHM SM |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | Abracon LLC | Delevan | Delevan |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
