CRBV55BE-2300-2500

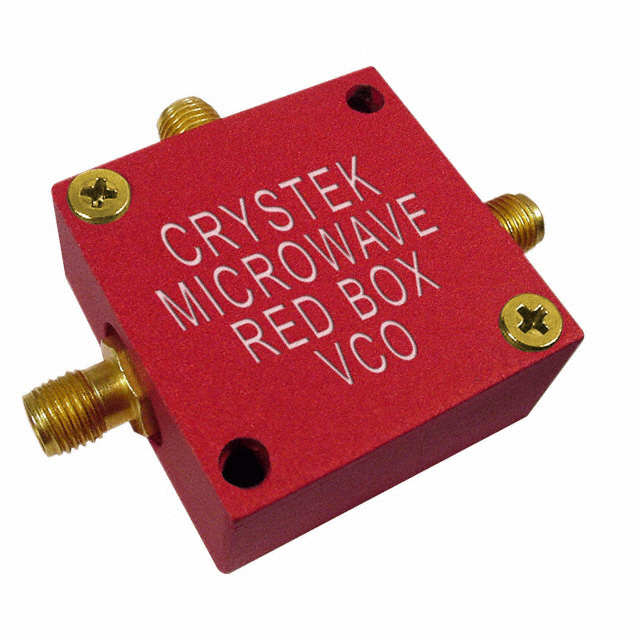

lmages are for reference only.CRBV55BE-2300-2500
VCO 2400MHZ 0.5-11V 31.75X14.99
DatasheetModule Adapter, SMA F (3)
66,418 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2400MHz Center Frequency 0.5 V ~ 11 V Voltage Controlled Oscillator 6 ±4 dBm -12 2nd Harmonic Typ (dBc)
CRBV55BE-2300-2500
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CRBV55, RedBox |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 2300 ~ 2500MHz |
| Frequency - Center | 2400MHz |
| Voltage - Supply | 8V |
| Tuning Voltage (VDC) | 0.5 V ~ 11 V |
| 2nd Harmonic, Typ (dBc) | -12 |
| Icc Max | 29mA |
| Pushing (MHz/V) | 0.5 |
| Power (dBm) | 6 ±4 |
| Phase Noise Typ (dBc/Hz) | -103 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Module Adapter, SMA F (3) |
| Size / Dimension | 1.250" L x 0.590" W (31.75mm x 14.99mm) |
| Height | 1.250" (31.75mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CRBV55BE-2300-2500 | CRBV55BE-2300-2500 | CRBV55BE-2300-2600 | CRBV55BE-2300-2600 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | VCO 2400MHZ 0.5-11V 31.75X14.99 | VCO 2400MHZ 0.5-11V 31.75X14.99 | VCO 2450MHZ 31.75MM X 31.75MM | VCO 2450MHZ 31.75MM X 31.75MM |
| Series | CRBV55, RedBox | CRBV55, RedBox | CRBV55, RedBox | CRBV55, RedBox |
| Packaging | Tray | Tray | Tray | Tray |
