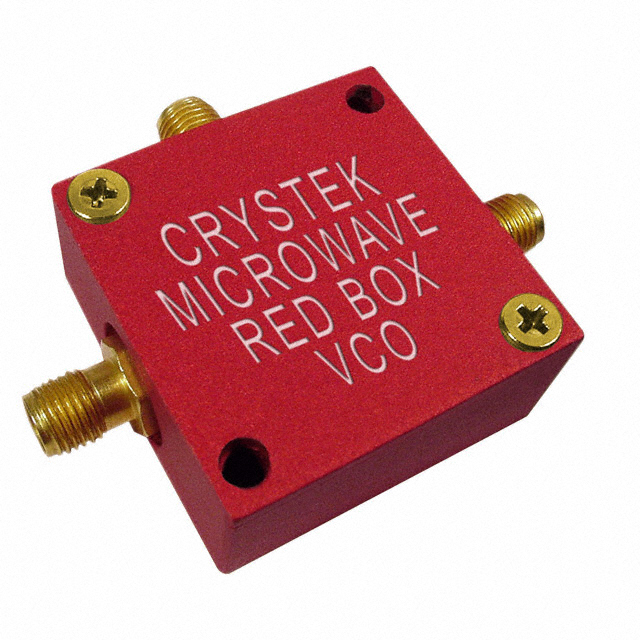

CRBV55CL-0045-0070
lmages are for reference only.CRBV55CL-0045-0070
VCO 57.5MHZ 0.5-10.5V
DatasheetModule Adapter, SMA F (3)
92,782 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
57.5MHz Center Frequency 0.5 V ~ 10.5 V Voltage Controlled Oscillator 5 ±3 dBm -10 2nd Harmonic Typ (dBc)
CRBV55CL-0045-0070
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CRBV55, RedBox |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 45 ~ 70MHz |
| Frequency - Center | 57.5MHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 0.5 V ~ 10.5 V |
| 2nd Harmonic, Typ (dBc) | -10 |
| Icc Max | 22mA |
| Pushing (MHz/V) | 0.5 |
| Power (dBm) | 5 ±3 |
| Phase Noise Typ (dBc/Hz) | -115 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Module Adapter, SMA F (3) |
| Size / Dimension | 1.250" L x 0.590" W (31.75mm x 14.99mm) |
| Height | 1.250" (31.75mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CRBV55CL-0045-0070 | CRBV55CL-0045-0070 | CRBV55CL-0072-0076 | CRBV55CL-0072-0076 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 57.5MHZ 0.5-10.5V | VCO 57.5MHZ 0.5-10.5V | VCO 74MHZ 0.3-3V 31.75X14.99MM | VCO 74MHZ 0.3-3V 31.75X14.99MM |
| Series | CRBV55, RedBox | CRBV55, RedBox | CRBV55, RedBox | CRBV55, RedBox |
| Packaging | Tray | Tray | Tray | Tray |
