CSM-L10G-LP
lmages are for reference only.CSM-L10G-LP
SENSOR 0.36PSIG 0.09" .0165V SMD
Datasheet8-CSMD, No Lead, Top Port
22,678 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 0.36PSI (2.49kPa) Vented Gauge Male - 0.09" (2.29mm) Tube 0 mV ~ 16.5 mV (3V) 8-CSMD, No Lead, Top Port
CSM-L10G-LP
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | CSM |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | CSM-L10G |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 0.36PSI (2.49kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 16.5 mV (3V) |
| Accuracy | ±0.5% |
| Voltage - Supply | 6V |
| Port Size | Male - 0.09" (2.29mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | SMD (SMT) Tab |
| Maximum Pressure | 3PSI (20.68kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-CSMD, No Lead, Top Port |
| Supplier Device Package | 8-CSMD |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CSM-L05G-LF | CSM-L05G-LP | CSM-L10G-LF | CPC100AFH |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

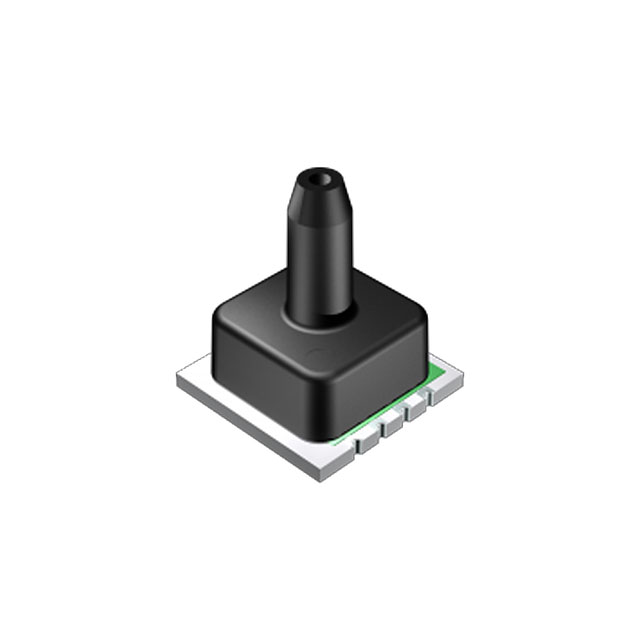

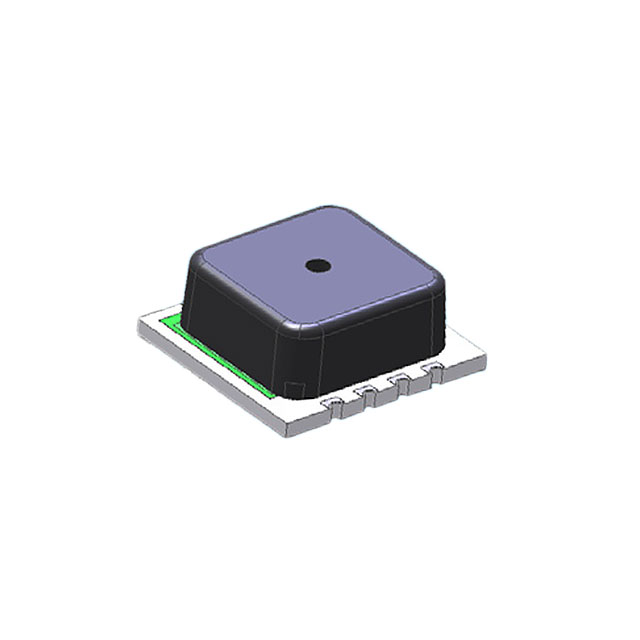

| Description | SENSOR 0.18PSIG .042V 8CSMD | SENSOR 0.18PSIG 0.09" .042V 8SMD | SENSOR 0.36PSIG .0165V 8CSMD | SENSOR 100PSIA 0.15" 0.1V |
| Series | CSM | CSM | CSM | CPC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
