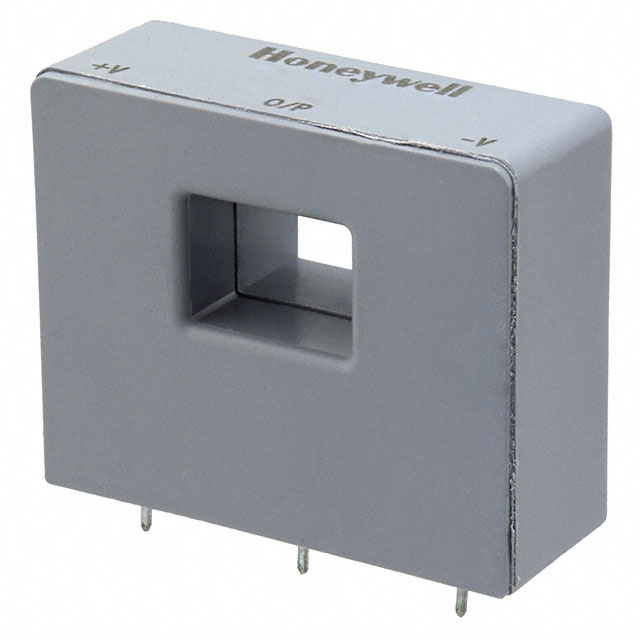

CSNF151-001
lmages are for reference only.CSNF151-001
SENSOR CURRENT HALL 180A AC/DC
DatasheetModule, Single Pass Through
12,643 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 180A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
CSNF151-001
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | CSN |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Closed Loop |
| Current - Sensing | 180A |
| Number of Channels | 1 |
| Output | Ratiometric, Current |
| Sensitivity | - |
| Frequency | - |
| Linearity | - |
| Accuracy | ±0.5% |
| Voltage - Supply | ±12V ~ 15V |
| Response Time | 0.5µs |
| Current - Supply (Max) | 10mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | CSNF151 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

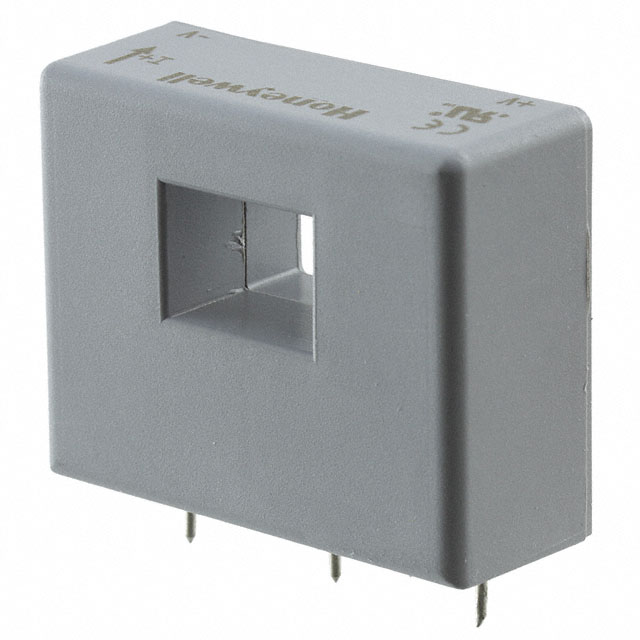

| Part Number | CSNF151 | CSNF161 | CSNF161-002 | CSLA1GF |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR CURRENT HALL 180A AC/DC | SENSOR CURRENT HALL 150A AC/DC | SENSOR CURRENT HALL 150A AC/DC | SENSOR CURRENT HALL 100A AC/DC |
| Series | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
