CSR1225JK30L0

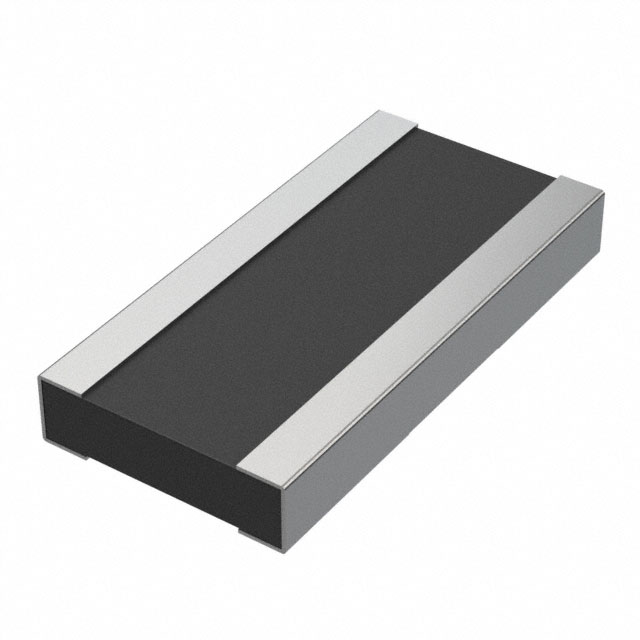

lmages are for reference only.CSR1225JK30L0
RES 0.03 OHM 5% 3W 2512 WIDE
DatasheetWide 2512 (6432 Metric), 1225
95,497 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30 mOhms ±5% 3W Chip Resistor Wide 2512 (6432 Metric), 1225 Current Sense Thick Film
CSR1225JK30L0
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Stackpole Electronics Inc |
| Series | CSR |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 30 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 3W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | ±150ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 1225 |
| Ratings | - |
| Size / Dimension | 0.122" L x 0.248" W (3.10mm x 6.30mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | CSR1225JK33L0 | CSR1225JK36L0 | CSR1225JK39L0 | CSR1225JK3L00 |
| Manufacturer | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.033 OHM 5% 3W 1225 | RES 0.036 OHM 5% 3W 1225 | RES 0.039 OHM 5% 3W 1225 | RES 0.003 OHM 5% 3W 1225 |
| Series | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
