CVCO55CC-2778-2945
lmages are for reference only.CVCO55CC-2778-2945
VCO 2861.5MHZ 0.1-16V 12.7X12.7
Datasheet16-QFN, Variant
27,497 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2861.5MHz Center Frequency 0.1 V ~ 16 V Voltage Controlled Oscillator 6 ±2 dBm -20 2nd Harmonic Typ (dBc)
CVCO55CC-2778-2945
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO55 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 2778 ~ 2945MHz |
| Frequency - Center | 2861.5MHz |
| Voltage - Supply | 8V |
| Tuning Voltage (VDC) | 0.1 V ~ 16 V |
| 2nd Harmonic, Typ (dBc) | -20 |
| Icc Max | 40mA |
| Pushing (MHz/V) | 2 |
| Power (dBm) | 6 ±2 |
| Phase Noise Typ (dBc/Hz) | -107 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.220" (5.59mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CVCO55CC-2778-2945 | CVCO55CC-2778-2945 | CVCO55CC-2770-2920 | CVCO55CC-2770-2920 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

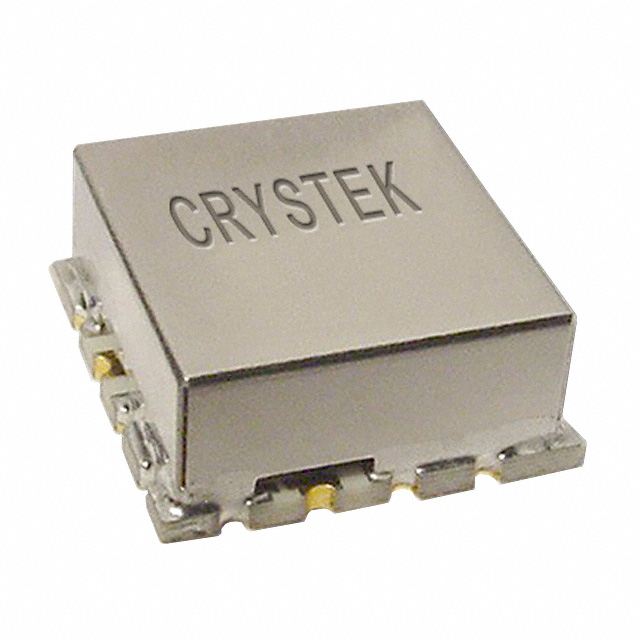

| Description | VCO 2861.5MHZ 0.1-16V 12.7X12.7 | VCO 2861.5MHZ 0.1-16V 12.7X12.7 | VCO 2845MHZ 0.3-4.7V 12.7X12.7MM | VCO 2845MHZ 0.3-4.7V 12.7X12.7MM |
| Series | CVCO55 | CVCO55 | CVCO55 | CVCO55 |
| Packaging | Strip | Strip | Strip | Strip |
