CVCO55CC-3205-3317

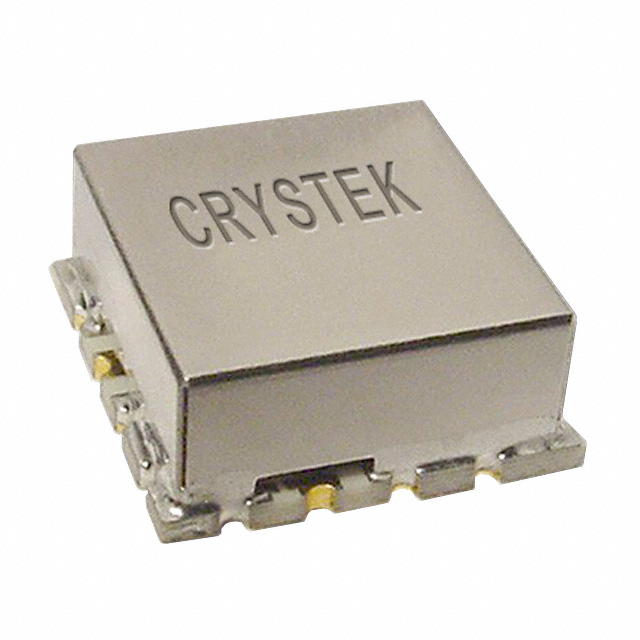

lmages are for reference only.CVCO55CC-3205-3317
VCO 3261MHZ 0.3-4.7V 12.7X12.7MM
Datasheet16-QFN, Variant
14,198 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3261MHz Center Frequency 0.3 V ~ 4.7 V Voltage Controlled Oscillator 3 ±3 dBm -15 2nd Harmonic Typ (dBc)
CVCO55CC-3205-3317
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO55 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 3205 ~ 3317MHz |
| Frequency - Center | 3261MHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 0.3 V ~ 4.7 V |
| 2nd Harmonic, Typ (dBc) | -15 |
| Icc Max | 28mA (Typ) |
| Pushing (MHz/V) | 2 |
| Power (dBm) | 3 ±3 |
| Phase Noise Typ (dBc/Hz) | -107 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.220" (5.59mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CVCO55CC-3205-3317 | CVCO55CC-3205-3317 | CVCO55CC-3200-3200 | CVCO55CC-3200-3200 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 3261MHZ 0.3-4.7V 12.7X12.7MM | VCO 3261MHZ 0.3-4.7V 12.7X12.7MM | VCO 3200MHZ 0.5-4.5V 12.7X12.7MM | VCO 3200MHZ 0.5-4.5V 12.7X12.7MM |
| Series | CVCO55 | CVCO55 | CVCO55 | CVCO55 |
| Packaging | Strip | Strip | Strip | Strip |
