CVCO55CL-0038-0042

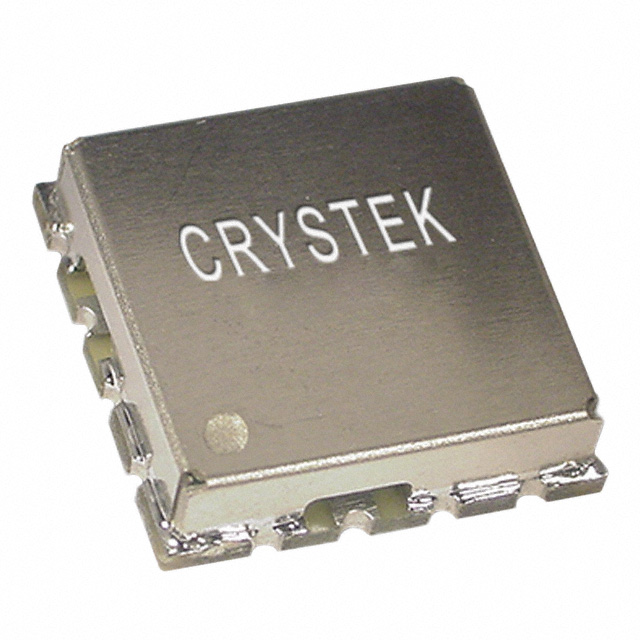

lmages are for reference only.CVCO55CL-0038-0042
VCO 40MHZ 0.3-4.7V 12.7X12.7MM
Datasheet16-SMD, No Lead, 13 Leads
77,277 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
40MHz Center Frequency 0.3 V ~ 4.7 V Voltage Controlled Oscillator 5 ±2 dBm -20 2nd Harmonic Typ (dBc)
CVCO55CL-0038-0042
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO55 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 38 ~ 42MHz |
| Frequency - Center | 40MHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 0.3 V ~ 4.7 V |
| 2nd Harmonic, Typ (dBc) | -20 |
| Icc Max | 10mA |
| Pushing (MHz/V) | 1 |
| Power (dBm) | 5 ±2 |
| Phase Noise Typ (dBc/Hz) | -116 |
| Operating Temperature | -30°C ~ 80°C |
| Package / Case | 16-SMD, No Lead, 13 Leads |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.150" (3.80mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CVCO55CL-0038-0042 | CVCO55CL-0038-0042 | CVCO55CL-0042-0046 | CVCO55CL-0042-0046 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 40MHZ 0.3-4.7V 12.7X12.7MM | VCO 40MHZ 0.3-4.7V 12.7X12.7MM | VCO 44MHZ 0.5-4.5V 12.7X12.7MM | VCO 44MHZ 0.5-4.5V 12.7X12.7MM |
| Series | CVCO55 | CVCO55 | CVCO55 | CVCO55 |
| Packaging | Strip | Strip | Strip | Strip |
