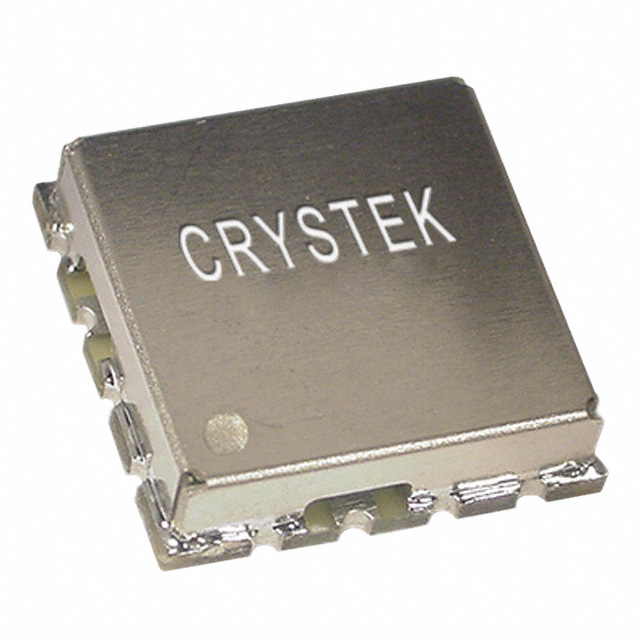

CVCO55CL-0209-0277
lmages are for reference only.CVCO55CL-0209-0277
VCO 243MHZ 0.5-6V 12.7X12.7MM
Datasheet16-QFN, Variant
62,935 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
243MHz Center Frequency 0.5 V ~ 6 V Voltage Controlled Oscillator 5 ±3 dBm -15 2nd Harmonic Typ (dBc)
CVCO55CL-0209-0277
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO55 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 209 ~ 277MHz |
| Frequency - Center | 243MHz |
| Voltage - Supply | 7V |
| Tuning Voltage (VDC) | 0.5 V ~ 6 V |
| 2nd Harmonic, Typ (dBc) | -15 |
| Icc Max | 20mA |
| Pushing (MHz/V) | 1.5 |
| Power (dBm) | 5 ±3 |
| Phase Noise Typ (dBc/Hz) | -112 |
| Operating Temperature | -40°C ~ 70°C |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.150" (3.81mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CVCO55CL-0209-0277 | CVCO55CL-0209-0277 | CVCO55CL-0200-0400 | CVCO55CL-0200-0400 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 243MHZ 0.5-6V 12.7X12.7MM | VCO 243MHZ 0.5-6V 12.7X12.7MM | VCO 300MHZ 0-5V 12.7MMX12.7MM | VCO 300MHZ 0-5V 12.7MMX12.7MM |
| Series | CVCO55 | CVCO55 | CVCO55 | CVCO55 |
| Packaging | Strip | Strip | Strip | Strip |
