DESDALC5ALP-7B

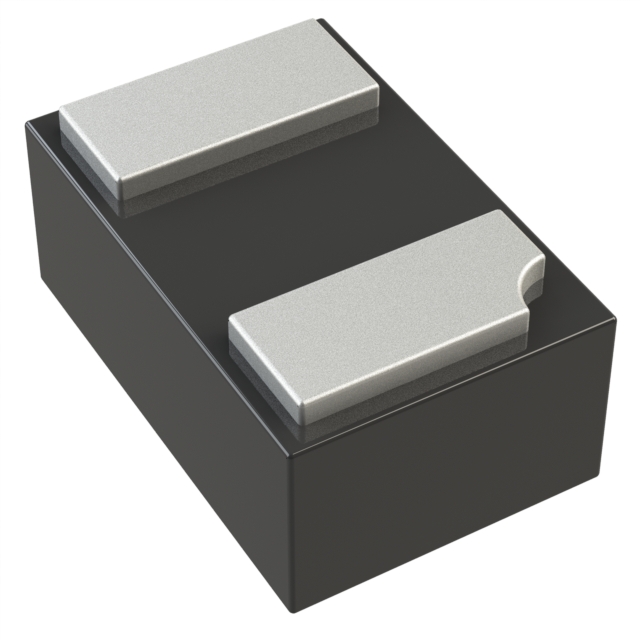

lmages are for reference only.DESDALC5ALP-7B
General Protection PP X1-DFN1006
Datasheet0402 (1006 Metric)
76,630 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
21V Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount X1-DFN1006-2
DESDALC5ALP-7B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | - |
| Voltage - Breakdown (Min) | 11V |
| Voltage - Clamping (Max) @ Ipp | 21V |
| Current - Peak Pulse (10/1000µs) | 9A (8/20µs) |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 26pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | X1-DFN1006-2 |
| Base Product Number | DESDALC5 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | DESDALC5LP-7B | DESD0V8Z1BCSF-7 | DESD10V0X1BD2CSP-7 | DESD12V0S1BL-7B |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 3VWM 16.7VC DFN1006-2 | GENERAL PROTECTION PP X2-DSN0603 | DATALINE PROTECTION PP X2-WLB060 | TVS DIODE 12VWM 33.5VC DFN1006-2 |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
