Product CatalogPart Number
DF150AB80
Manufacturer
SanRex CorporationDescription
DIOE MODULE 800V 150A
Datasheet
DatasheetPackage
Module
In Stock
80,925 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DF150AB80
DF150AB80
lmages are for reference only.Payment Methods
Delivery Services
Bridge Rectifier Three Phase Standard 800 V Chassis Mount
Quick Inquiry
DF150AB80
Specifications
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | SanRex Corporation |
| Series | - |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Diode Type | Three Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 150 A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 150 A |
| Current - Reverse Leakage @ Vr | 15 mA @ 800 V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | DF150 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

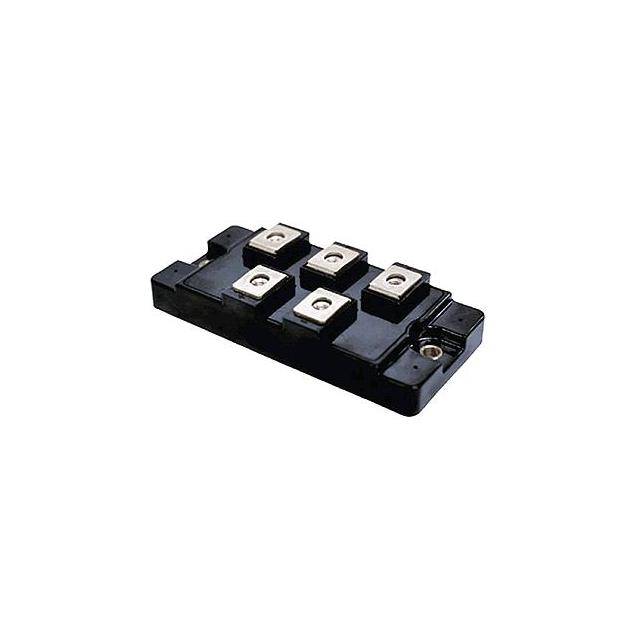

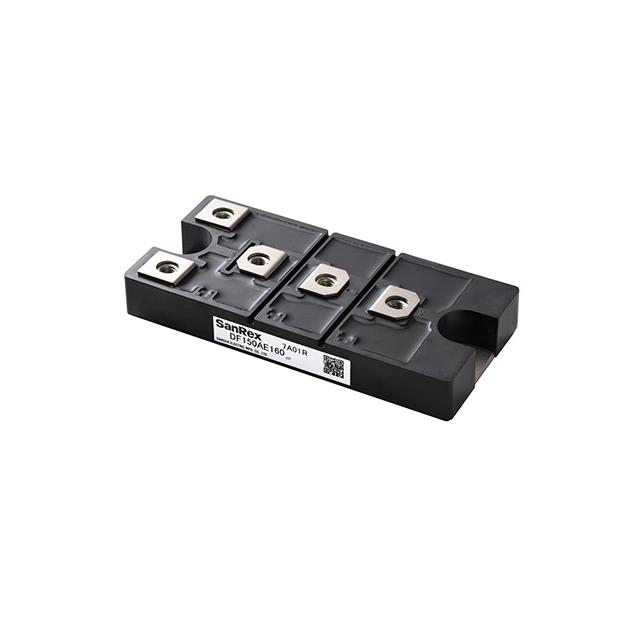

| Part Number | DF150AB160 | DF150AE160 | DF150AE80 | DF10S-HF |
| Manufacturer | SanRex Corporation | SanRex Corporation | SanRex Corporation | Comchip Technology |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DIOE MODULE 1600V 150A | DIODE MODULE 1600V 150A | DIODE MODULE 800V 150A | BRIDGE RECT 1PHASE 1KV 1A DFS |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tube |
