DM0520LW1
lmages are for reference only.DM0520LW1
HIGH ISOLATION DOUBLE BALANCED
DatasheetModule, SMA Connectors
10,631 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mixer IC General Purpose 5GHz ~ 20GHz Module
DM0520LW1
| Category | RF and Wireless - RF Mixers - |
| Manufacturer | L3 Narda-MITEQ |
| Series | - |
| Packaging | Box |
| RoHS Status | Not applicable |
| RF Type | General Purpose |
| Frequency | 5GHz ~ 20GHz |
| Number of Mixers | 2 |
| Gain | - |
| Noise Figure | 9dB |
| Secondary Attributes | - |
| Current - Supply | - |
| Voltage - Supply | - |
| Mounting Type | Connector Mount |
| Package / Case | Module, SMA Connectors |
| Supplier Device Package | Module |
| Base Product Number | DM0520 |
| Product Attribute |  |
 |
 |
 |

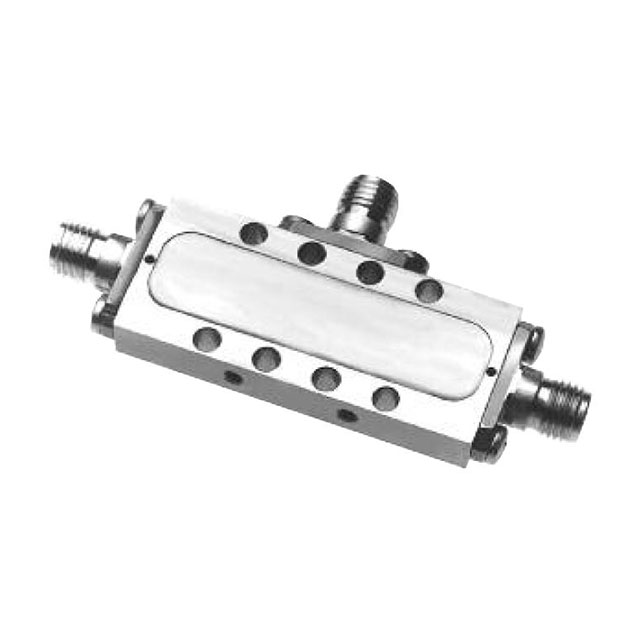

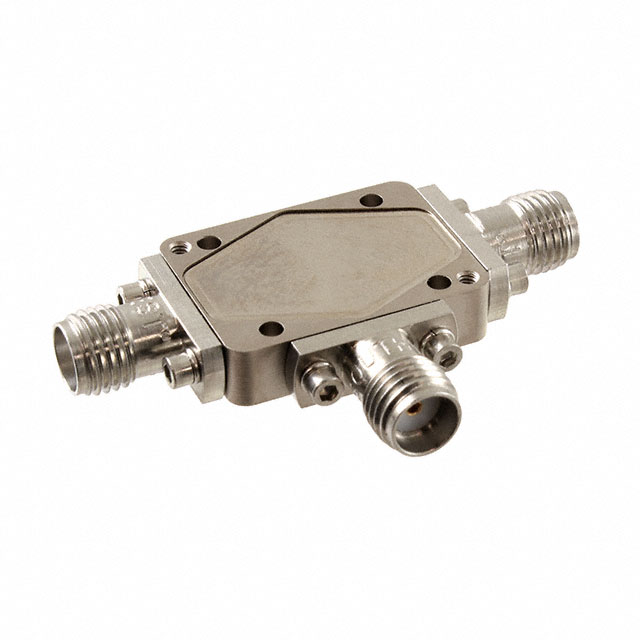

| Part Number | DM0052LA2 | DM0104LA1 | DM0208LW2 | DM0412LW2 |
| Manufacturer | L3 Narda-MITEQ | L3 Narda-MITEQ | L3 Narda-MITEQ | L3 Narda-MITEQ |
| RoHS Status | Not applicable | Not applicable | Not applicable | RoHS Compliant |
| Description | HIGH ISOLATION DOUBLE BALANCED | HIGH ISOLATION DOUBLE BALANCED | HIGH ISOLATION DOUBLE BALANCED | HIGH ISOLATION, DOUBLE BALANCED |
| Series | - | DM0104L | DM | - |
| Packaging | Box | Box | Box | Box |
