DMN2008LFU-13
lmages are for reference only.DMN2008LFU-13
MOSFET 2N-CH 20V 14.5A 6UDFN
Datasheet6-UFDFN Exposed Pad
67,379 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 14.5A 1W Surface Mount U-DFN2030-6 (Type B)
DMN2008LFU-13
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 14.5A |
| Rds On (Max) @ Id, Vgs | 5.4mOhm @ 5.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 42.3nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1418pF @ 10V |
| Power - Max | 1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | U-DFN2030-6 (Type B) |
| Base Product Number | DMN2008 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | DMN2008LFU-7 | DMN1001UCA10-7 | DMN1002UCA6-7 | DMN1003UCA6-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

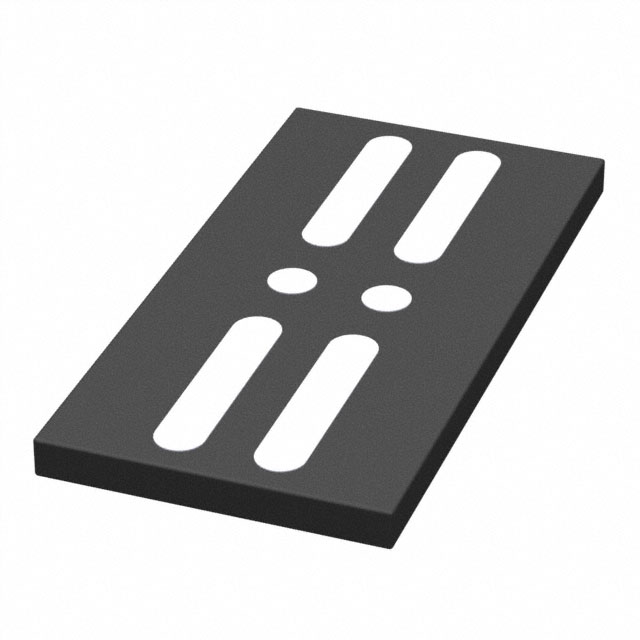

| Description | MOSFET 2N-CH 20V 14.5A 6UDFN | MOSFET 2N-CH 12V 20A X2-TSN1820 | MOSFET 2N-CH X4-DSN3118-6 | MOSFET 2N-CH X3-DSN3518-6 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
