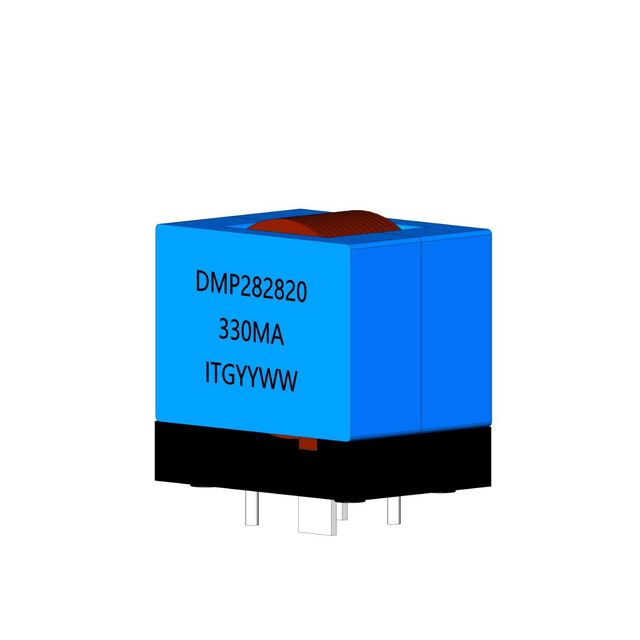

DMP282820A-500MHF
lmages are for reference only.DMP282820A-500MHF
FLAT WIRE DIP 50.0UH 6.8M 22.7A
DatasheetRadial, Horizontal, 4 Leads
95,656 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
50 µH Unshielded Wirewound Inductor 21 A 6.8mOhm Radial, Horizontal, 4 Leads
DMP282820A-500MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | DMP282820A |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Wirewound |
| Material - Core | Alloy Powder |
| Inductance | 50 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 21 A |
| Current - Saturation (Isat) | 10.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.8mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, 4 Leads |
| Supplier Device Package | Radial |
| Size / Dimension | 1.083" L x 0.787" W (27.50mm x 20.00mm) |
| Height - Seated (Max) | 1.102" (28.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | DMP282820A-500MHF | DMP282820A-121MHF | DMP282820A-161MHF | DMP282820A-221MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FLAT WIRE DIP 50.0UH 6.8M 22.7A | FLAT WIRE DIP 125UH 16.7M 14.3A | FLAT WIRE DIP 165UH 22.3M 12.4A | FLAT WIRE DIP 220UH 31.0M 10.7A |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
