DMP282829A-211MHF
lmages are for reference only.DMP282829A-211MHF
FLAT WIRE DIP 210UH 21.6M 12.6A
DatasheetRadial, Horizontal, 4 Leads
72,450 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
210 µH Unshielded Wirewound Inductor 12 A 21.6mOhm Radial, Horizontal, 4 Leads
DMP282829A-211MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | DMP282829A |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Wirewound |
| Material - Core | Alloy Powder |
| Inductance | 210 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | 5.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 21.6mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, 4 Leads |
| Supplier Device Package | Radial |
| Size / Dimension | 1.083" L x 1.122" W (27.50mm x 28.50mm) |
| Height - Seated (Max) | 1.102" (28.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

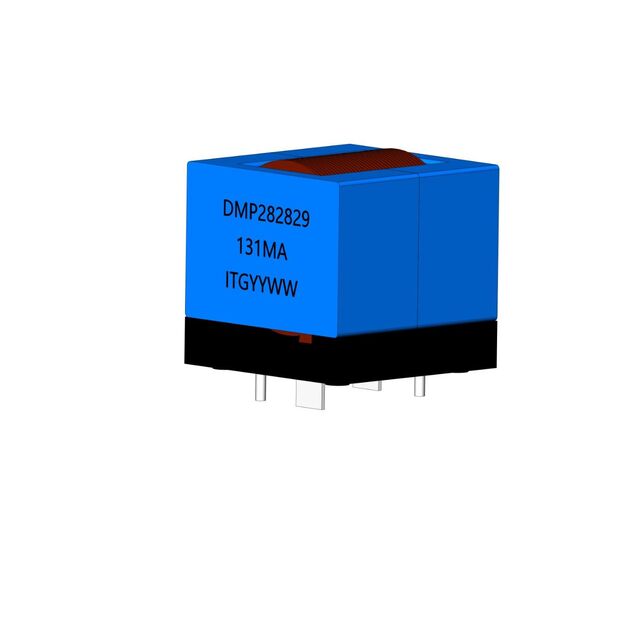

| Part Number | DMP282829A-111MHF | DMP282829A-131MHF | DMP282829A-341MHF | DMP282829A-701MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FLAT WIRE DIP 115UH 11.9M 16.8A | FLAT WIRE DIP 135UH 14.0M 15.8A | FLAT WIRE DIP 340UH 36.6M 9.9A | FLAT WIRE DIP 700UH 86.0M 6.9A |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
