Product CatalogPart Number
DMT10H009LFG-7
Manufacturer
Diodes IncorporatedDescription
MOSFET N-CH 100V 13A/50A PWRDI
Datasheet
DatasheetPackage
8-PowerVDFN
In Stock
51,354 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DMT10H009LFG-7
DMT10H009LFG-7
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 100 V 13A (Ta), 50A (Tc) 2W (Ta), 30W (Tc) Surface Mount POWERDI3333-8
Quick Inquiry
DMT10H009LFG-7
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta), 50A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2361 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 30W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | POWERDI3333-8 |
| Package / Case | 8-PowerVDFN |
| Base Product Number | DMT10 |
| Gate Charge (Qg) (Max) @ Vgs | 41 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | DMT10H009LFG-13 | DMT10H003SPSW-13 | DMT10H009LCG-7 | DMT10H009LH3 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 100V 13A/50A PWRDI | MOSFET BVDSS: 61V~100V POWERDI50 | MOSFET N-CH 100V 12.4A/47A 8DFN | MOSFET N-CH 100V 84A TO251 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
Customers Also Interested in
Recommended Products
DMT10H003SPSW-13
Diodes Incorporated
DMT10H009LCG-7
Diodes Incorporated
DMT10H009LFG-13
Diodes Incorporated

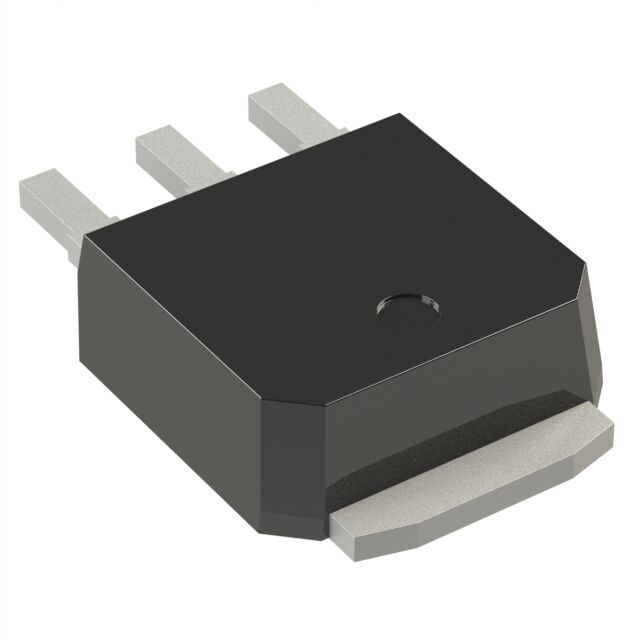

DMT10H009LH3
Diodes Incorporated
DMT10H009LK3-13
Diodes Incorporated

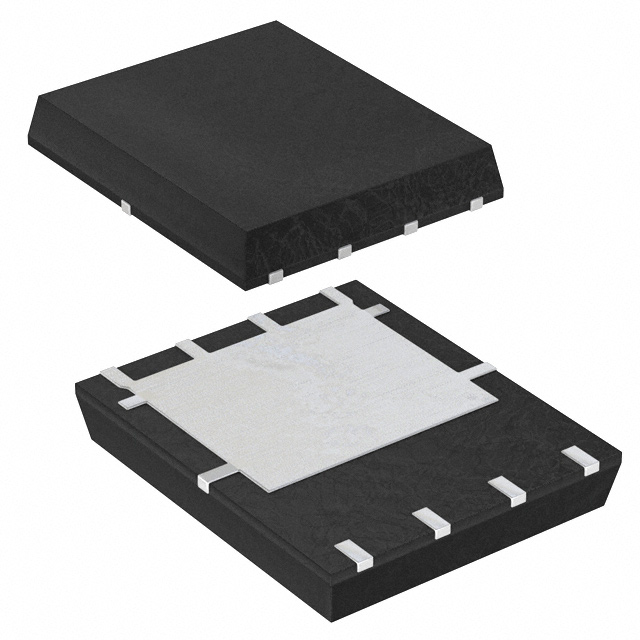

DMT10H009LPS-13
Diodes Incorporated
DMT10H009LSS-13
Diodes Incorporated
DMT10H009LSSQ-13
Diodes Incorporated

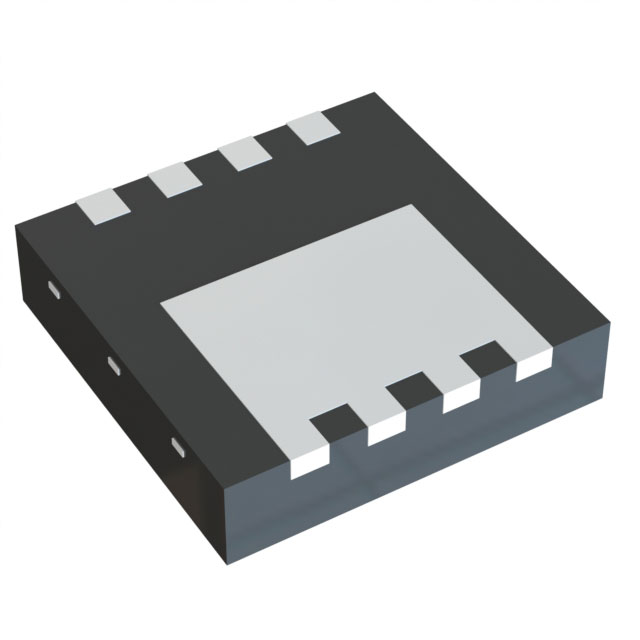

DMT10H009SCG-13
Diodes Incorporated
DMT10H009SCG-7
Diodes Incorporated

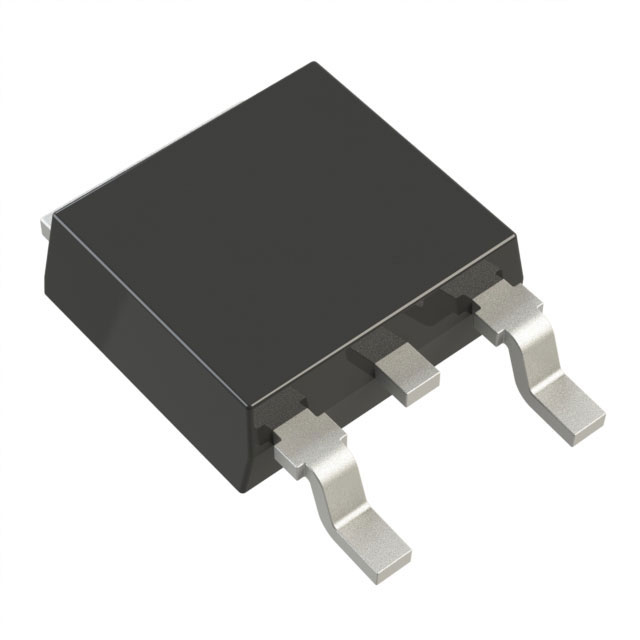

DMT10H009SK3-13
Diodes Incorporated
DMT10H009SPS-13
Diodes Incorporated
DMT10H009SSS-13
Diodes Incorporated

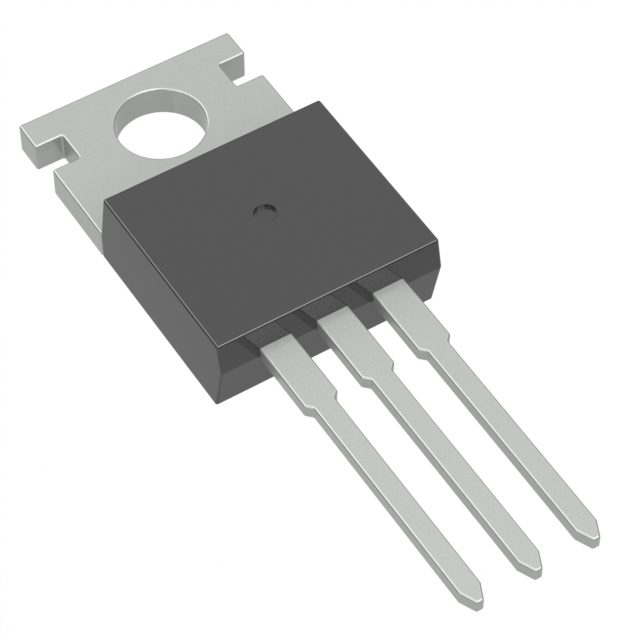

DMT10H010LCT
Diodes Incorporated

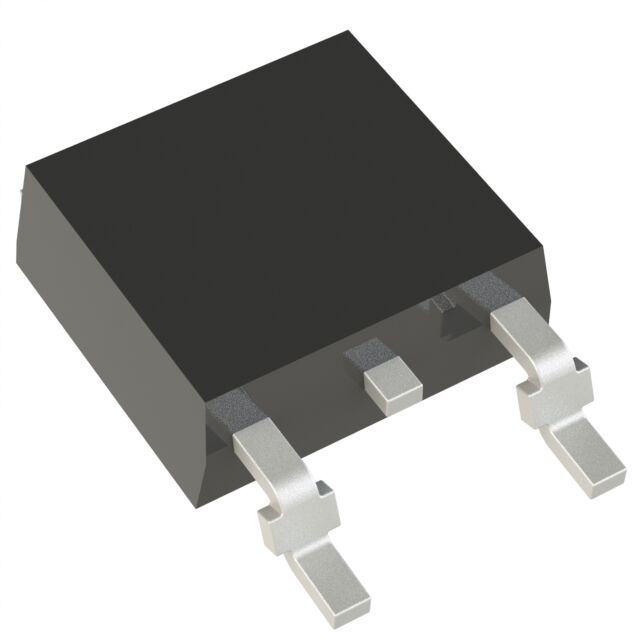

DMT10H010LK3-13
