DRC-V-560K
lmages are for reference only.DRC-V-560K
FIXED IND 56UH 1.75A 0.18OHM TH
DatasheetRadial, Vertical Cylinder
25,919 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
56 µH Unshielded Drum Core, Wirewound Inductor 1.75 A 180mOhm Max Radial, Vertical Cylinder
DRC-V-560K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | DRC-V |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 56 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.75 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | 30 @ 2.52MHz |
| Frequency - Self Resonant | 5.4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Base Product Number | DRC-V |
| Product Attribute |  |
 |
 |
|

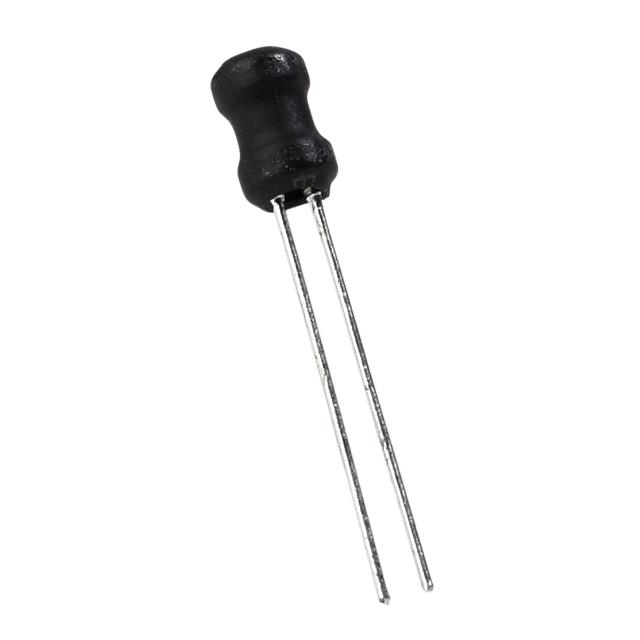

| Part Number | DRC-V-561K | DRC-V-562K | DRC-0406-101J-UL | DRC-0406-101J-UL |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 560UH 450MA 1.4OHM TH | FIXED IND 5.6MH 145MA 18OHM TH | RADIAL INDUCTOR WITH LEADS, 100. | RADIAL INDUCTOR WITH LEADS, 100. |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tray | Tray | Bag | Bag |
