DRC-V-820K
lmages are for reference only.DRC-V-820K
FIXED IND 82UH 1.35A 0.23OHM TH
DatasheetRadial, Vertical Cylinder
85,963 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
82 µH Unshielded Drum Core, Wirewound Inductor 1.35 A 230mOhm Max Radial, Vertical Cylinder
DRC-V-820K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | DRC-V |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 82 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.35 A |
| Current - Saturation (Isat) | 1.1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 230mOhm Max |
| Q @ Freq | 30 @ 2.52MHz |
| Frequency - Self Resonant | 4.1MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Base Product Number | DRC-V |
| Product Attribute |  |
 |
 |
|

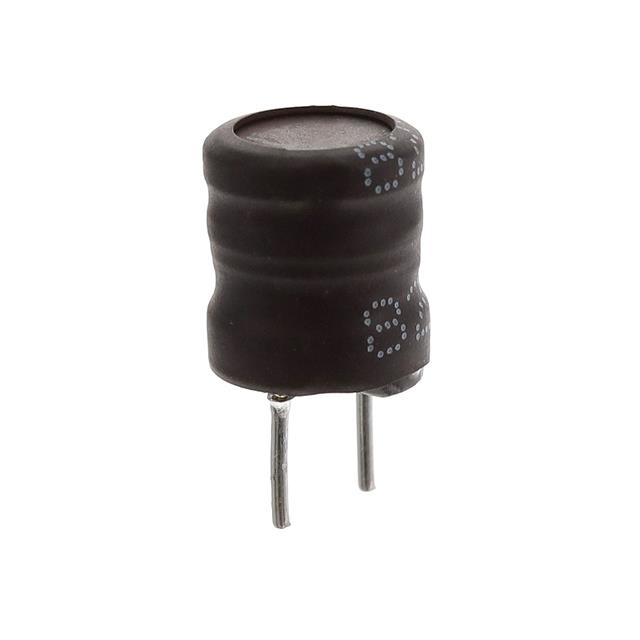

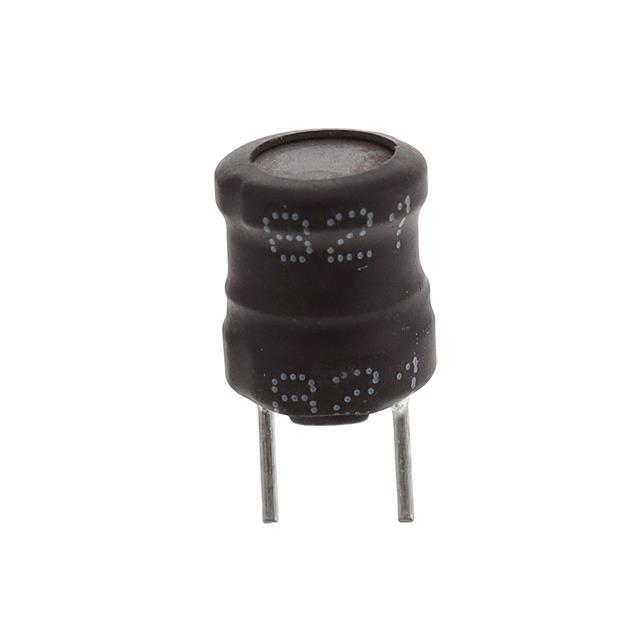

| Part Number | DRC-V-821K | DRC-V-822K | DRC-0406-101J-UL | DRC-0406-101J-UL |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 820UH 410MA 1.8OHM TH | FIXED IND 8.2MH 130MA 21OHM TH | RADIAL INDUCTOR WITH LEADS, 100. | RADIAL INDUCTOR WITH LEADS, 100. |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tray | Tray | Bag | Bag |
