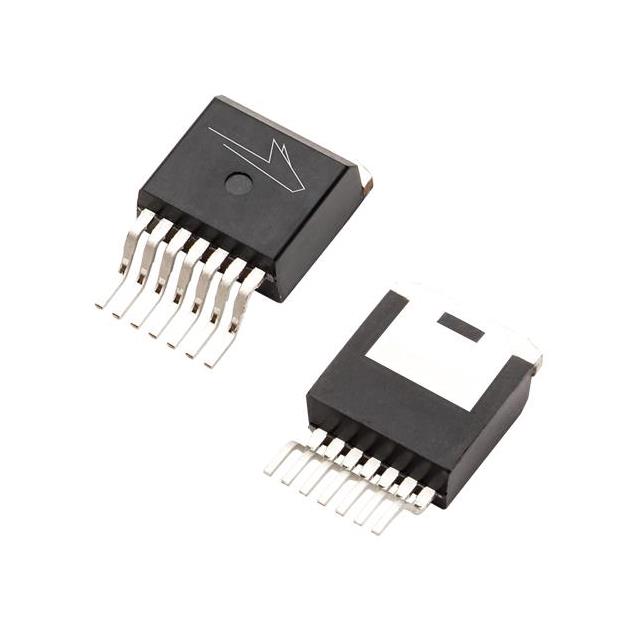

E3M0120090J-TR
lmages are for reference only.E3M0120090J-TR
SIC, MOSFET, 120M, 900V, TO-263-
DatasheetTO-263-8, D2PAK (7 Leads + Tab), TO-263CA
25,856 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 900 V 22A (Tc) 83W (Tc) Surface Mount TO-263-7
E3M0120090J-TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Wolfspeed, Inc. |
| Series | E |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 155mOhm @ 15A, 15V |
| Vgs(th) (Max) @ Id | 3.5V @ 3mA |
| Vgs (Max) | +15V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 414 pF @ 600 V |
| FET Feature | - |
| Power Dissipation (Max) | 83W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | E3M0120090D | E3M0120090J | E3M0016120K | E3M0021120J2-TR |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SICFET N-CH 900V 23A TO247-3 | 900V 120M AUTOMOTIVE SIC MOSFET | SIC, MOSFET, 16M, 1200V, TO-247- | 21m, 1200V SiC FET, TO-263-7 XL |
| Series | E-Series | E-Series | - | E |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
