EBVW025A0B9641-HZ

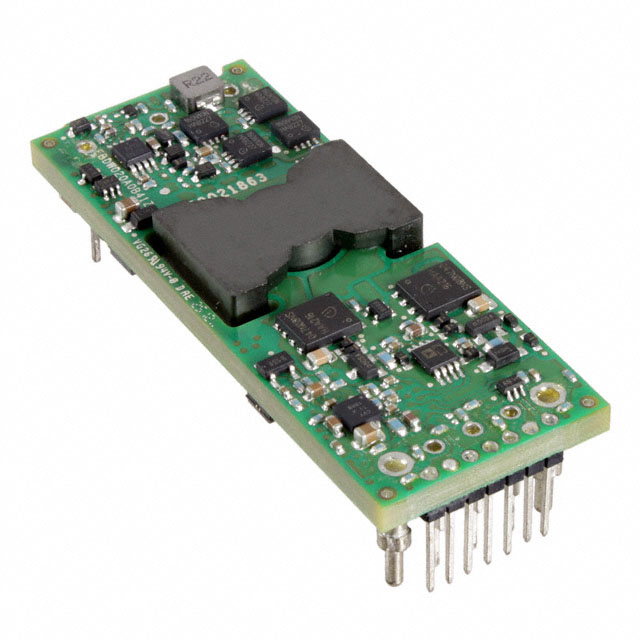

lmages are for reference only.EBVW025A0B9641-HZ
DC DC CONVERTER 12V 300W
Datasheet8-DIP Module, 1/8 Brick
71,016 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Intermediate Bus Converter DC DC Converter 1 Output 12V 25A 36V - 75V Input
EBVW025A0B9641-HZ
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | Barracuda™ EBVW025A0B (300W) |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Intermediate Bus Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 25A |
| Power (Watts) | 300 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94.7% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.44" H (58.4mm x 22.9mm x 11.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | EBVW025 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | EBVW025A0B9641-PHZ | EBVW025A0B9641-PZ | EBVW025A0B41-HZ | EBVW025A0B41Z |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | DC DC CONVERTER 12V 300W | DC DC CONVERTER 12V 300W | DC DC CONVERTER 12V 300W | DC DC CONVERTER 12V 300W |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Tray | Tray | Bulk | Bulk |
