ECLAMP2357NQTLT

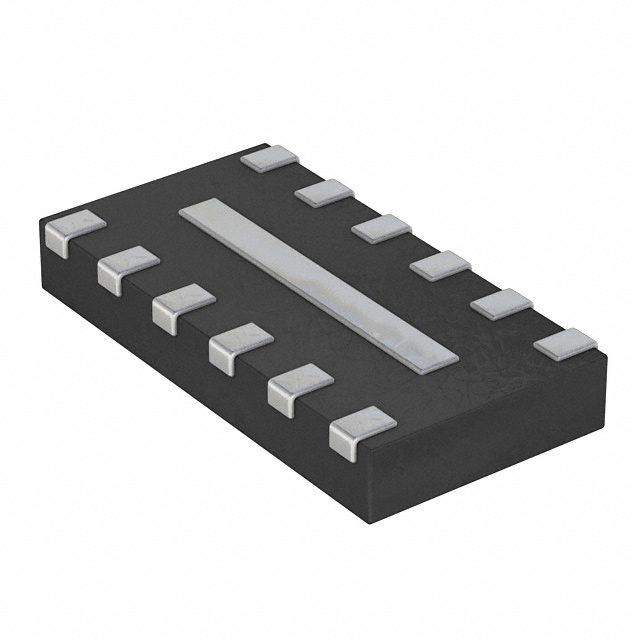

lmages are for reference only.ECLAMP2357NQTLT
FILTER LC(PI) 100 OHM/12PF SMD
Datasheet16-UFQFN Exposed Pad
53,904 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RC (Pi) EMI Filter 3rd Order Low Pass 6 Channel R = 100Ohms, C = 12pF 16-UFQFN Exposed Pad
ECLAMP2357NQTLT
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Semtech Corporation |
| Series | EMIClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | RC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | 30dB @ 1.8GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 12pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Applications | - |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN Exposed Pad |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height | 0.028" (0.70mm) |
| Number of Channels | 6 |
| Base Product Number | ECLAMP2357 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
|
|
 |
| Part Number | ECLAMP2357N.TCT | ECLAMP2357N.TCT | ECLAMP2357NQTLT | ECLAMP0501T.TCT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ||
| Description | FILTER RC(PI) 100 OHM/12PF SMD | FILTER RC(PI) 100 OHM/12PF SMD | FILTER LC(PI) 100 OHM/12PF SMD | FILTER RC 1 KOHM/12PF ESD SMD |
| Series | EClamp™ | EClamp™ | EMIClamp® | EMIClamp® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
