ECS-P85-B
lmages are for reference only.Payment Methods
Delivery Services
XO (Standard) HCMOS 1 MHz ~ 150 MHz Programmable Oscillator 5V Enable/Disable 8-DIP, 4 Leads (Half Size, Metal Can)
ECS-P85-B
| Category | Crystals, Oscillators, Resonators - Programmable Oscillators - |
| Manufacturer | ECS Inc. |
| Series | ECS-P85 |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Available Frequency Range | 1 MHz ~ 150 MHz |
| Function | Enable/Disable |
| Output | HCMOS |
| Voltage - Supply | 5V |
| Frequency Stability | - |
| Frequency Stability (Total) | ±50ppm |
| Operating Temperature | 0°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 45mA |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP, 4 Leads (Half Size, Metal Can) |
| Size / Dimension | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

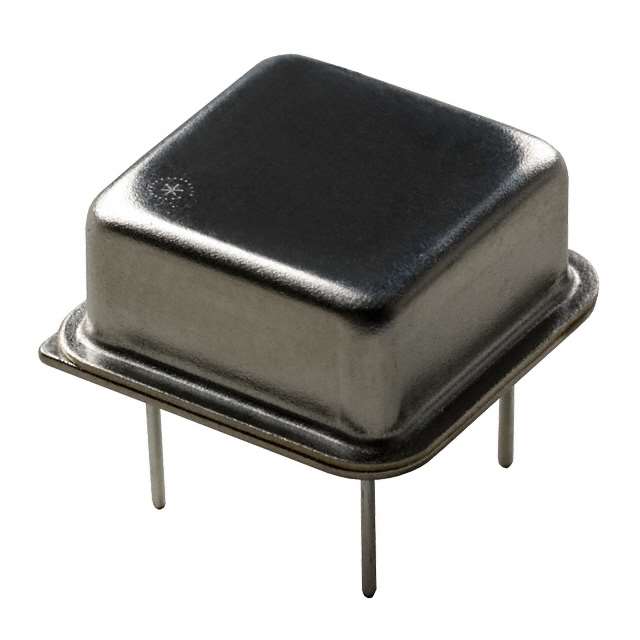

| Part Number | ECS-P85-A | ECS-P85-AN | ECS-P85-ANX | ECS-P85-AX |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC PROG XO HCMOS 5V 100PPM | XTAL OSC PROG XO HCMOS 5V 100PPM | XTAL OSC PROG XO HCMOS 5V 100PPM | XTAL OSC PROG XO HCMOS 5V 100PPM |
| Series | ECS-P85 | ECS-P85 | ECS-P85X | ECS-P85X |
| Packaging | Tube | Tube | Tube | Tube |
