Product CatalogPart Number
EEA-FC1E390
Manufacturer
Panasonic Electronic ComponentsDescription
CAP ALUM 25V POLAR
Datasheet
DatasheetPackage
Radial, Can
In Stock
15,748 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EEA-FC1E390
EEA-FC1E390

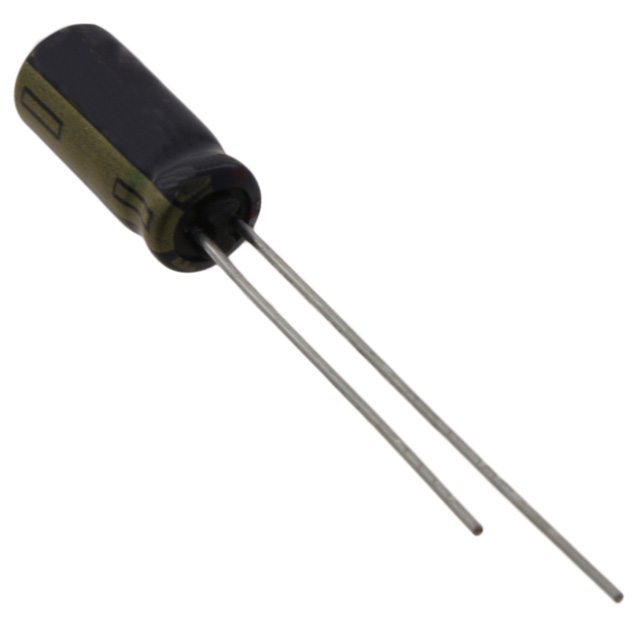

lmages are for reference only.Payment Methods
Delivery Services
39 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Quick Inquiry
EEA-FC1E390
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | FC-A |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 200 mA @ 100 kHz |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 450 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | EEA-FC1E390B | EEA-FC1E100 | EEA-FC1E100B | EEA-FC1E100H |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 39UF 20% 25V RADIAL TH | CAP ALUM 10UF 20% 25V RADIAL TH | CAP ALUM 10UF 20% 25V RADIAL TH | CAP ALUM 10UF 20% 25V RADIAL TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
