5600 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - 5 Lead 44mOhm @ 120Hz 2000 Hrs @ 105°C
EKMH101VRT562MB50T
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | KMH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 44mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.99 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.788 A @ 100 kHz |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - 5 Lead |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
|
|
 |

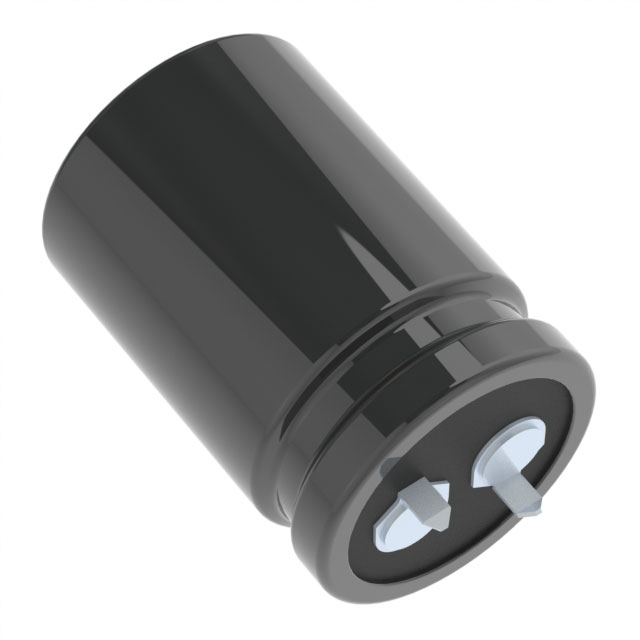

| Part Number | EKMH101VND103MB80T | EKMH101VNN102MQ30T | EKMH101VNN103MB80T | EKMH101VNN122MQ35T |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 10000UF 20% 100V SNAP | CAP ALUM 1000UF 20% 100V SNAP TH | CAP ALUM 10000UF 20% 100V SNAP | CAP ALUM 1200UF 20% 100V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
