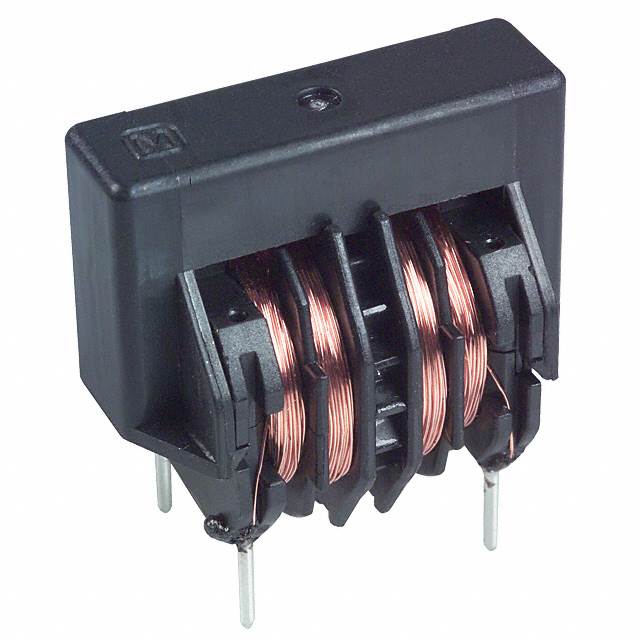

ELF-15N003A
lmages are for reference only.ELF-15N003A
CMC 300MA 2LN TH
DatasheetVertical, 4 PC Pin
44,155 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Through Hole 300mA DCR 3.154Ohm (Typ)
ELF-15N003A
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Panasonic Electronic Components |
| Series | N |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 3.154Ohm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | - |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.591" L x 0.894" W (15.00mm x 22.70mm) |
| Height (Max) | 0.886" (22.50mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | ELF-15 |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ELF-15N002A | ELF-15N004A | ELF-15N005A | ELF-15N006A |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CMC 200MA 2LN TH | CMC 400MA 2LN TH | CMC 500MA 2LN TH | CMC 600MA 2LN TH |
| Series | N | N | N | N |
| Packaging | Bulk | Bulk | Bulk | Bulk |
