ESD3Z5.0C
lmages are for reference only.ESD3Z5.0C
TVS DIODE 5V VBR MIN 6V SOD-32
DatasheetSC-76, SOD-323
81,566 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
17V Clamp 24A Ipp Tvs Diode Surface Mount SOD-323
ESD3Z5.0C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Series | ESD3ZxxC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 17V |
| Current - Peak Pulse (10/1000µs) | 24A |
| Power - Peak Pulse | 320W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 260pF @ 1MHz (Max) |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

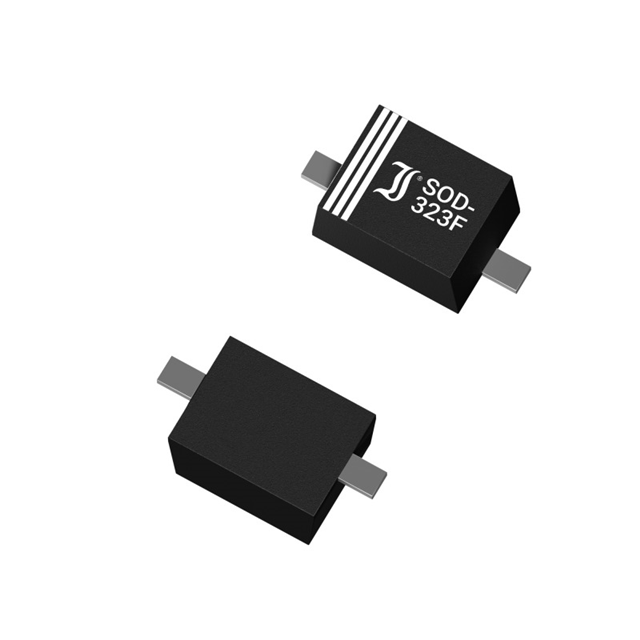

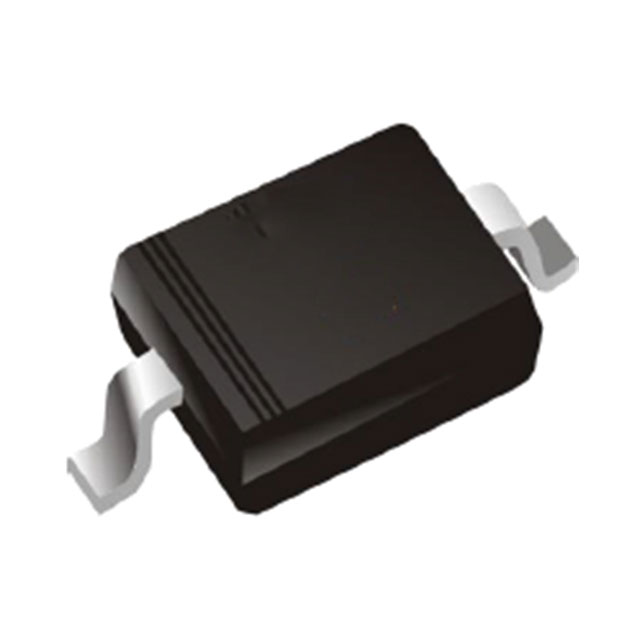

| Part Number | ESD3Z5V0 | ESD3Z5V0BU | ESD0301BL | ESD0302L |
| Manufacturer | Diotec Semiconductor | MDD | MDD | MDD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ESD SOD-323F 9.8V 125DEG 10UA | TVS DIODE 5VWM 13VC SOD323 | TVS DIODE 3.3VWM 12VC DFN1006 | TVS DIODE 3.3VWM 10VC DFN1006-3L |
| Series | Diotec Semiconductor | MDD | MDD | MDD |
| Packaging | Cut Tape (CT)-->Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
