Product CatalogPart Number
ESD3Z3V3BU
Manufacturer
MDDDescription
TVS DIODE 3.3VWM 12VC SOD323
Datasheet
DatasheetPackage
SC-76, SOD-323
In Stock
24,062 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ESD3Z3V3BU
ESD3Z3V3BU
lmages are for reference only.Payment Methods
Delivery Services
Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Quick Inquiry
ESD3Z3V3BU
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | MDD |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 4.2V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power - Peak Pulse | 100W |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.4pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |

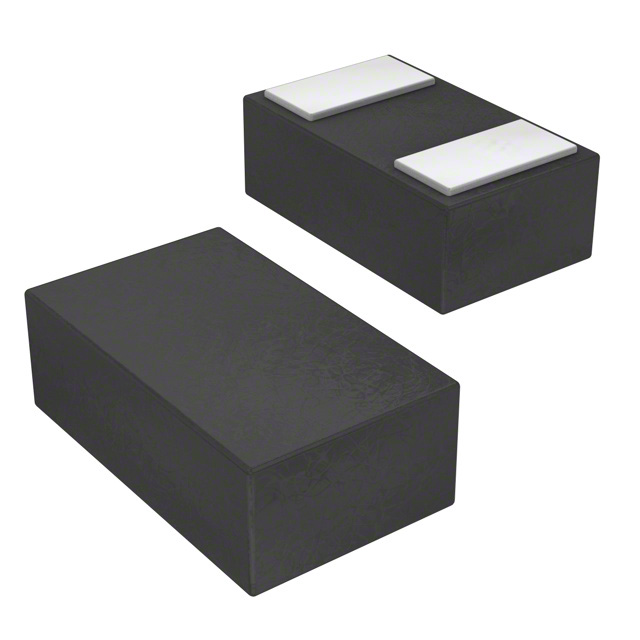

| Part Number | ESD300B102LRHE6327XTSA1 | ESD307U102NE6327XTSA1 | ESD311U102NE6327XTSA1 | ESD321DPYR |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 3.3VWM 10.5V TSLP-2-17 | TVS DIODE 10VWM 29VC TSNP-2-2 | TVS DIODE 15VWM 35VC TSNP-2-2 | TVS DIODE 3.6VWM 6.8VC 2X1SON |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Texas Instruments |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
