ESMH100VRD823MA50T

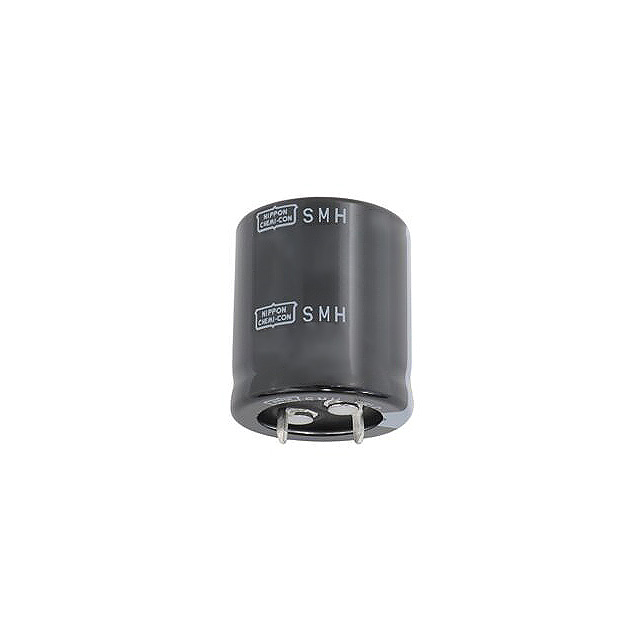

lmages are for reference only.Payment Methods
Delivery Services
82000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 10mOhm @ 120Hz 2000 Hrs @ 85°C
ESMH100VRD823MA50T
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | SMH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 82000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 10mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.49 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.1692 A @ 100 kHz |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - 4 Lead |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
 |
|
|
| Part Number | ESMH100VSN153MP30T | ESMH100VSN153MQ25T | ESMH100VSN183MP35T | ESMH100VSN223MP40T |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 15000UF 20% 10V SNAP TH | CAP ALUM 15000UF 20% 10V SNAP TH | CAP ALUM 18000UF 20% 10V SNAP TH | CAP ALUM 22000UF 20% 10V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
