ESMH101VND103MA63T

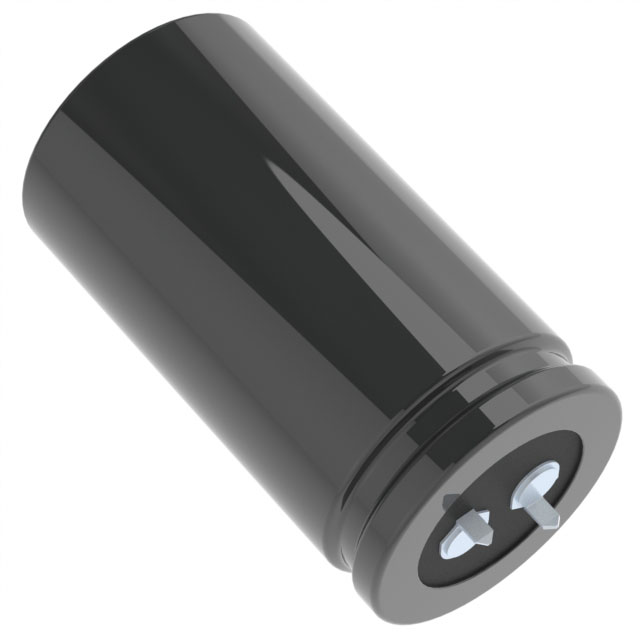

lmages are for reference only.Payment Methods
Delivery Services
10000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 2000 Hrs @ 85°C
ESMH101VND103MA63T
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | SMH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.559" (65.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
|
 |
| Part Number | ESMH101VND103MA63U | ESMH101VNN103MA63S | ESMH101VNN103MA63S | ESMH101VNN103MA63T |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 10000UF 20% 100V SNAP | CAP ALUM 10000UF 20% 100V SNAP | CAP ALUM 10000UF 20% 100V SNAP | CAP ALUM 10000UF 20% 100V SNAP |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
