F1B1-383812-390M

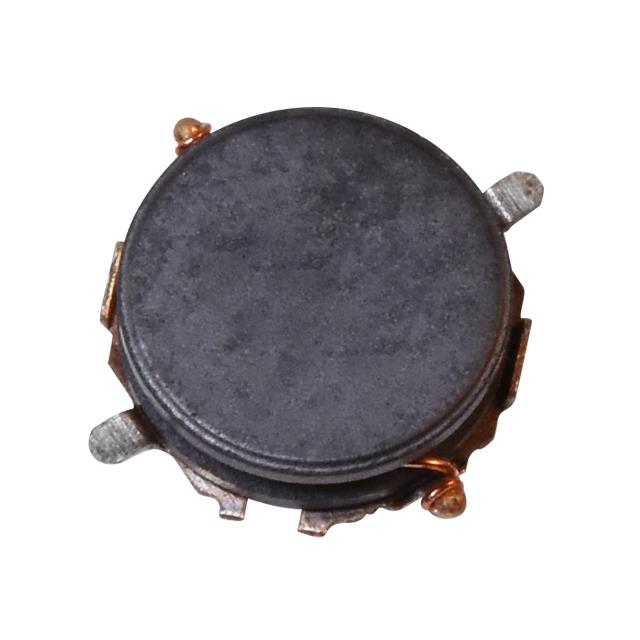

lmages are for reference only.F1B1-383812-390M
FIXED IND 39.0UH 320MA 1920 MOHM
DatasheetNonstandard
23,779 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
39 µH Unshielded Drum Core, Wirewound Inductor 320 mA 1.92kOhm Max Nonstandard
F1B1-383812-390M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | F1B1-383812 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | - |
| Inductance | 39 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 320 mA |
| Current - Saturation (Isat) | 400mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.92kOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | F1B1-383812-390M | F1B1-383812-330M | F1B1-383812-3R3M | F1B1-383812-3R9M |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 39.0UH 320MA 1920 MOHM | FIXED IND 33.0UH 380MA 1392 MOHM | FIXED IND 3.3UH 1.3A 168 MOHM | FIXED IND 3.9UH 1.2A 195 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
