Product CatalogPart Number
F1B1-383812-3R3M
Manufacturer
Signal TransformerDescription
FIXED IND 3.3UH 1.3A 168 MOHM
Datasheet
DatasheetPackage
Nonstandard
In Stock
72,370 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
F1B1-383812-3R3M
F1B1-383812-3R3M

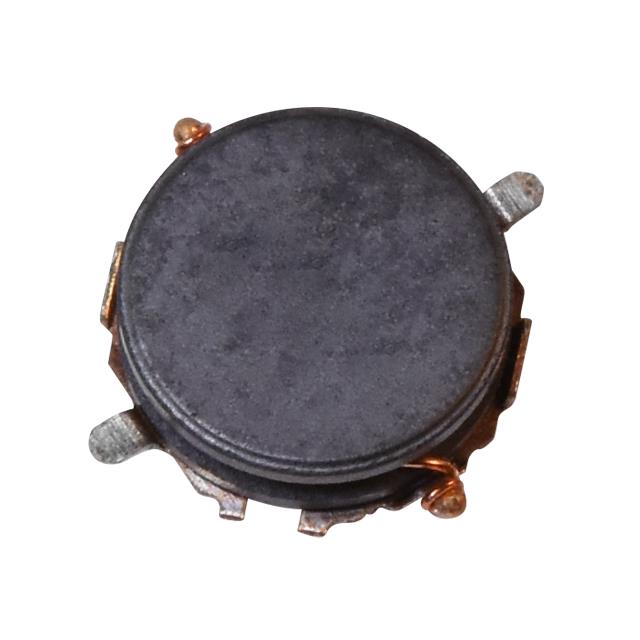

lmages are for reference only.Payment Methods
Delivery Services
3.3 µH Unshielded Drum Core, Wirewound Inductor 1.3 A 168Ohm Max Nonstandard
Quick Inquiry
F1B1-383812-3R3M
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | F1B1-383812 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 1.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 168Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | F1B1-383812-330M | F1B1-383812-390M | F1B1-383812-390M | F1B1-383812-3R9M |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 33.0UH 380MA 1392 MOHM | FIXED IND 39.0UH 320MA 1920 MOHM | FIXED IND 39.0UH 320MA 1920 MOHM | FIXED IND 3.9UH 1.2A 195 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
