FAM65CR51XZ2
lmages are for reference only.Payment Methods
Delivery Services
Mosfet Array 650V 64A (Tc) 463W (Tc) Through Hole APMCD-B16
FAM65CR51XZ2
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 650V |
| Current - Continuous Drain (Id) @ 25°C | 64A (Tc) |
| Rds On (Max) @ Id, Vgs | 51mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 3.3mA |
| Gate Charge (Qg) (Max) @ Vgs | 123nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 4864pF @ 400V |
| Power - Max | 463W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 12-SSIP Exposed Pad, Formed Leads |
| Supplier Device Package | APMCD-B16 |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
.jpg "TPC8211(TE12L,Q,M)") |

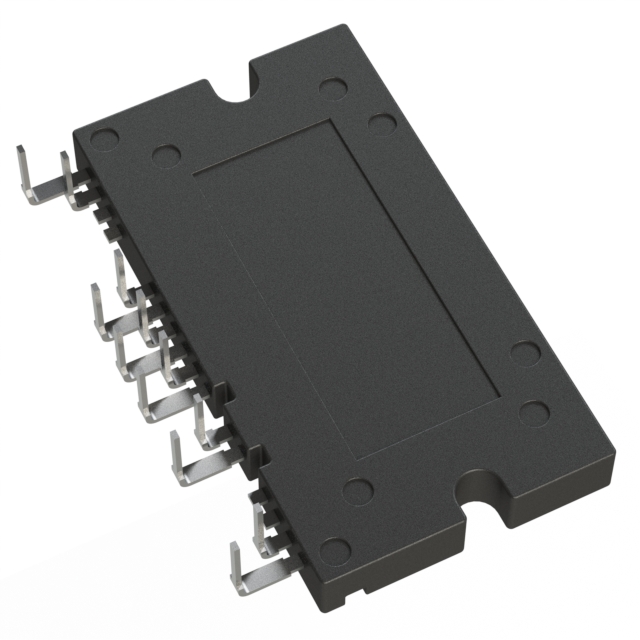

| Part Number | FAM65CR51ADZ1 | FAM65CR51XZ1 | FAM65CR51DZ1 | TPC8211(TE12L,Q,M) |
| Manufacturer | onsemi | onsemi | onsemi | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2N-CH 650V 41A APMCD-B16 | MOSFET 2N-CH 650V 64A APMCA-A16 | MOSFET 2N-CH 650V 33A APMCD-B16 | MOSFET 2N-CH 30V 5.5A 8SOP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
