FCBA1-0805F-6N8J

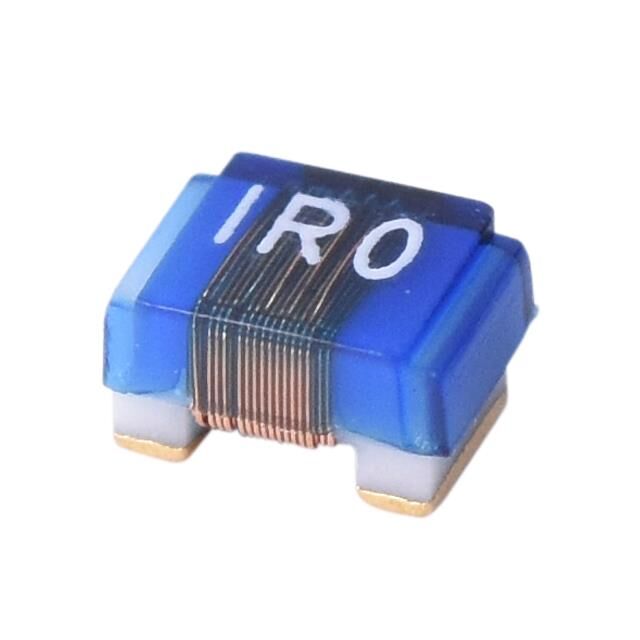

lmages are for reference only.FCBA1-0805F-6N8J
FIXED IND 6.8NH 600MA 0.11 MOHM
Datasheet0805 (2012 Metric)
15,794 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 nH Unshielded Wirewound Inductor 600 mA 110mOhm Max 0805 (2012 Metric)
FCBA1-0805F-6N8J
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | FCBA1-0805 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 110mOhm Max |
| Q @ Freq | 50 @ 1GHz |
| Frequency - Self Resonant | 5.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.091" L x 0.068" W (2.30mm x 1.73mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | FCBA1-0805F-68NJ | FCBA1-0805F-6N8J | FCBA1-0805F-10NJ | FCBA1-0805F-12NJ |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 68NH 500MA 0.38 MOHM | FIXED IND 6.8NH 600MA 0.11 MOHM | FIXED IND 10NH 600MA 0.15 MOHM | FIXED IND 12NH 600MA 0.15 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
