Product CatalogPart Number
FCH041N65F-F085
Manufacturer
onsemiDescription
MOSFET N-CH 650V 76A TO247-3
Datasheet
DatasheetPackage
TO-247-3
In Stock
12,470 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FCH041N65F-F085
FCH041N65F-F085
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 650 V 76A (Tc) 595W (Tc) Through Hole TO-247-3
Quick Inquiry
FCH041N65F-F085
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | SuperFET® II |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 76A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 41mOhm @ 38A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 13566 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 595W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
| Base Product Number | FCH041 |
| Gate Charge (Qg) (Max) @ Vgs | 304 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | FCH041N65F-F085 | FCH041N65F-F155 | FCH041N65EF | FCH041N65EF-F155 |
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | |
| Description | MOSFET N-CH 650V 76A TO247-3 | MOSFET N-CH 650V 76A TO247 | N-CHANNEL, MOSFET | MOSFET N-CH 650V 76A TO247 |
| Series | SuperFET® II | FRFET®, SuperFET® II | * | FRFET®, SuperFET® II |
| Packaging | Bulk | Tube | Bulk | Tube |
Customers Also Interested in
Recommended Products
FCH040N65S3-F155
onsemi
FCH041N60E
onsemi

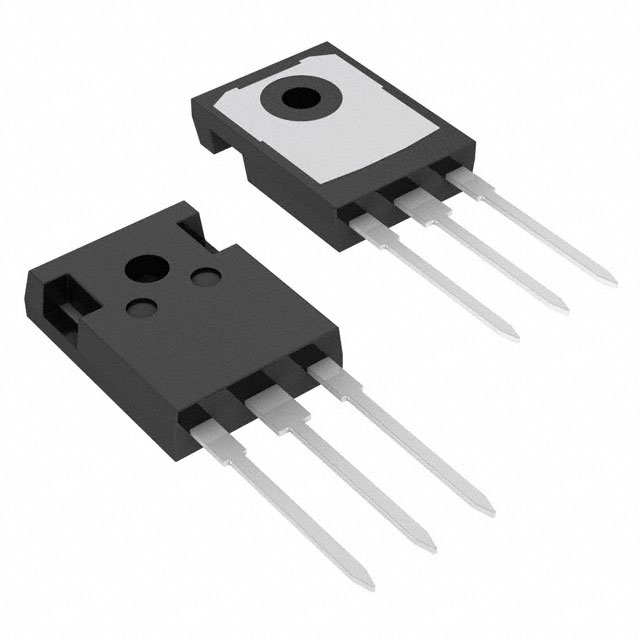

FCH041N60F
onsemi
FCH041N60F-F085
onsemi
FCH041N65EF
Fairchild Semiconductor
FCH041N65EF-F155
onsemi
FCH041N65EFL4
onsemi
FCH041N65EFL4
Fairchild Semiconductor

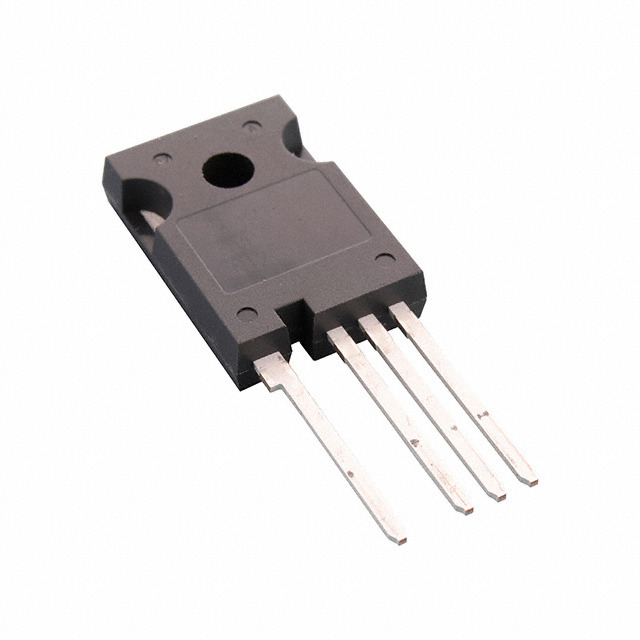

FCH041N65EFLN4
onsemi
FCH041N65F
Fairchild Semiconductor
FCH041N65F-F085
Fairchild Semiconductor

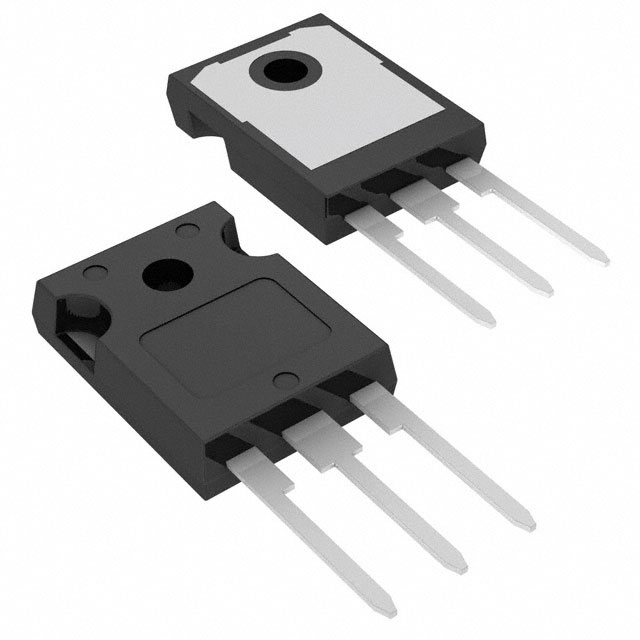

FCH041N65F-F155
onsemi

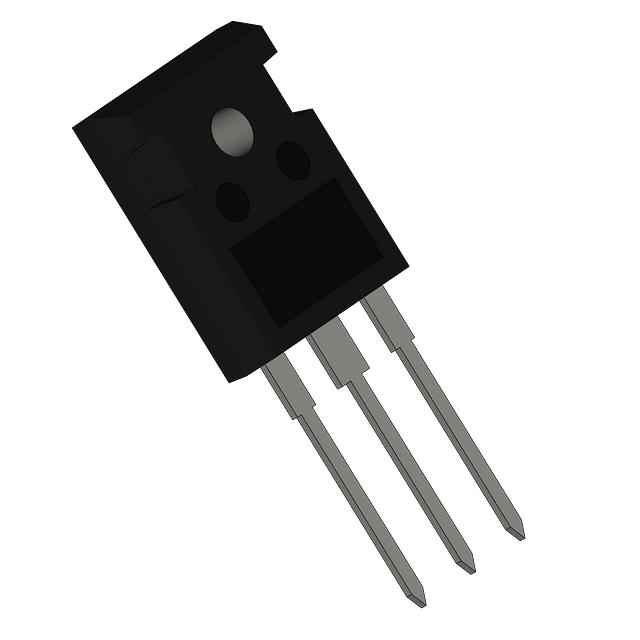

FCH043N60
