Product CatalogPart Number
FCH040N65S3-F155
Manufacturer
onsemiDescription
MOSFET N-CH 650V 65A TO247-3
Datasheet
DatasheetPackage
TO-247-3
In Stock
18,663 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FCH040N65S3-F155
FCH040N65S3-F155
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 650 V 65A (Tc) 417W (Tc) Through Hole TO-247-3
Quick Inquiry
FCH040N65S3-F155
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | SuperFET® III |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 65A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 32.5A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 6.5mA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4740 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 417W (Tc) |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
| Base Product Number | FCH040 |
| Gate Charge (Qg) (Max) @ Vgs | 136 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | FDPF5N50TYDTU | FCH041N65F-F085 | FCP16N60 | FQA7N80C |
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

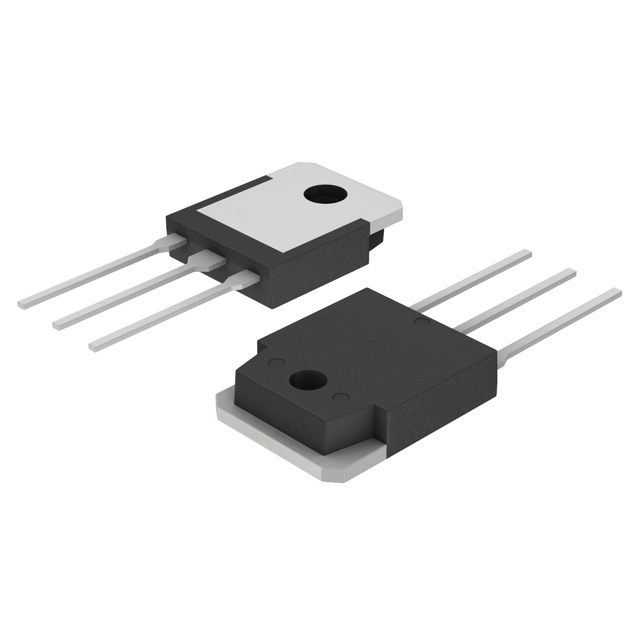

| Description | MOSFET N-CH 500V 5A TO220F | MOSFET N-CH 650V 76A TO247-3 | MOSFET N-CH 600V 16A TO220-3 | MOSFET N-CH 800V 7A TO3P |
| Series | UniFET™ | SuperFET® II | SuperFET™ | QFET® |
| Packaging | Tube | Tube | Tube | Tube |
