Product CatalogPart Number
FDMA8051L
Manufacturer
onsemiDescription
MOSFET N-CH 40V 10A 6MICROFET
Datasheet
DatasheetPackage
6-WDFN Exposed Pad
In Stock
45,804 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FDMA8051L
FDMA8051L
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 40 V 10A (Tc) 2.4W (Ta) Surface Mount 6-MicroFET (2x2)
Quick Inquiry
FDMA8051L
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 14mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1260 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroFET (2x2) |
| Package / Case | 6-WDFN Exposed Pad |
| Base Product Number | FDMA8051 |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

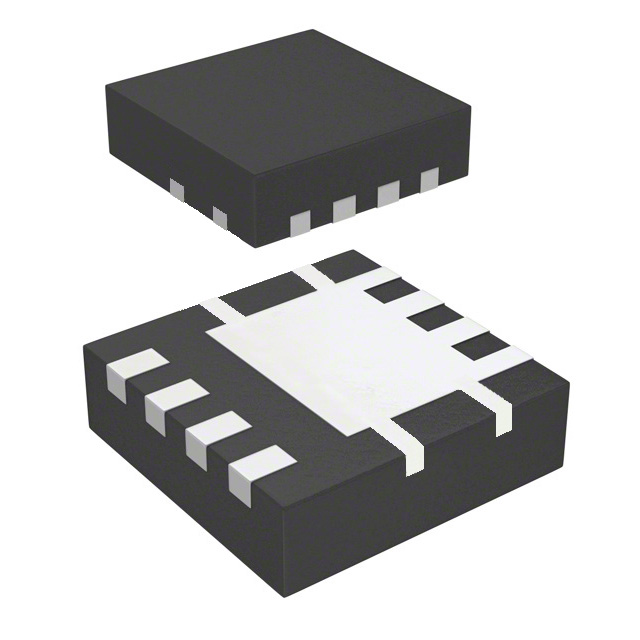

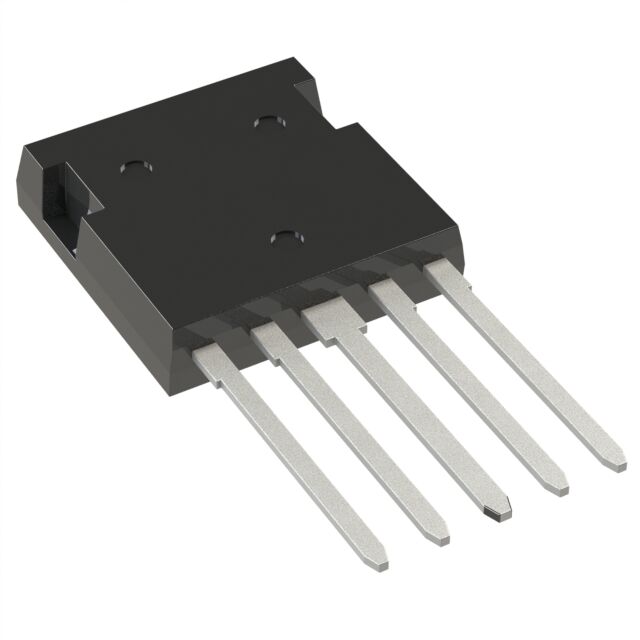

| Part Number | FDM15-06KC5 | FDM21-05QC | FDM3622 | FDM47-06KC5 |
| Manufacturer | IXYS | IXYS | onsemi | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 600V 15A I4PAC | MOSFET N-CH 500V 21A I4PAC | MOSFET N-CH 100V 4.4A 8MLP | MOSFET N-CH 600V 47A I4PAC |
| Series | CoolMOS™ | - | PowerTrench® | CoolMOS™, HiPerDyn™ |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
