Product CatalogPart Number
FDMA86265P
Manufacturer
onsemiDescription
MOSFET P-CH 150V 1A 6MICROFET
Datasheet
DatasheetPackage
6-WDFN Exposed Pad
In Stock
74,357 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FDMA86265P
FDMA86265P
lmages are for reference only.Payment Methods
Delivery Services
P-Channel 150 V 1A (Ta) 2.4W (Ta) Surface Mount 6-MicroFET (2x2)
Quick Inquiry
FDMA86265P
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 210 pF @ 75 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroFET (2x2) |
| Package / Case | 6-WDFN Exposed Pad |
| Base Product Number | FDMA86265 |
| Gate Charge (Qg) (Max) @ Vgs | 4 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |

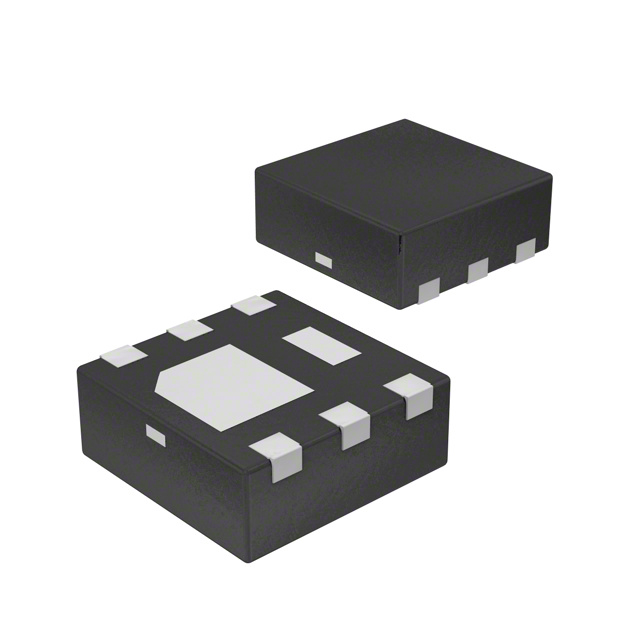

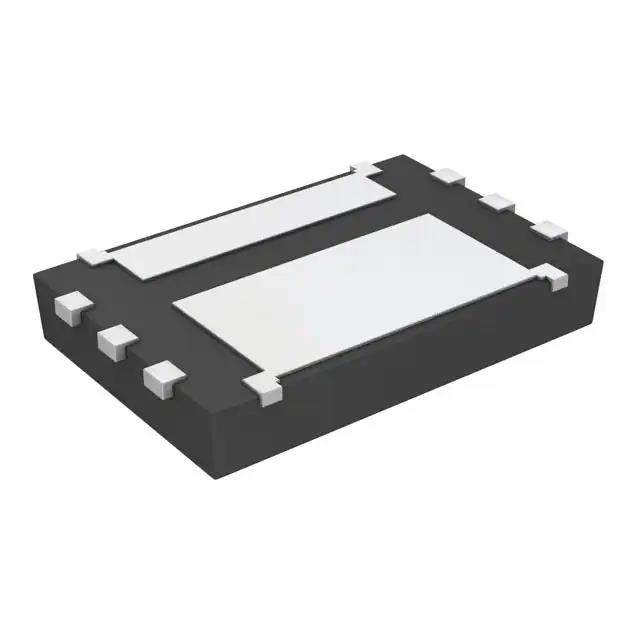

| Part Number | FDMA86251 | FDMA008P20LZ | FDMA008P20LZ | FDMA0104 |
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Not applicable | |
| Description | MOSFET N-CH 150V 2.4A 6MICROFET | MOSFET P-CHANNEL 20V 12A 6PQFN | SINGLE P-CHANNEL POWERTRENCH MOS | TRANS MOSFET N-CH 20V 9.4A 6PIN |
| Series | PowerTrench® | - | - | PowerTrench® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk | Bulk |
