Product CatalogPart Number
FDMD84100
Manufacturer
onsemiDescription
MOSFET 2N-CH 100V 7A PWR 3.3X5
Datasheet
DatasheetPackage
8-PowerWDFN
In Stock
63,659 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FDMD84100
FDMD84100
lmages are for reference only.Payment Methods
Delivery Services
Mosfet Array 100V 7A 2.1W Surface Mount Power 3.3x5
Quick Inquiry
FDMD84100
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) Common Source |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 7A |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 16nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 980pF @ 50V |
| Power - Max | 2.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | Power 3.3x5 |
| Base Product Number | FDMD84 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | FDMD8430 | FDMD8440L | FDM2509NZ | FDM2509NZ |
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET 2N-CH 30V 28A 8PQFN | MOSFET 2N-CH 40V 21A PWR 3.3X5 | MOSFET 2N-CH 20V 8.7A MICRO 2X2 | MOSFET 2N-CH 20V 8.7A MICRO 2X2 |
| Series | PowerTrench® | PowerTrench® | PowerTrench® | PowerTrench® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
Customers Also Interested in
Recommended Products

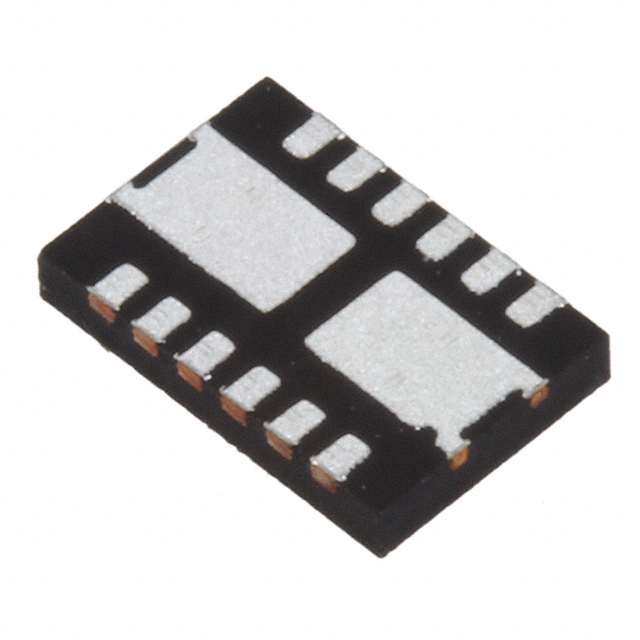

FDMD82100
onsemi
FDMD82100L
onsemi
FDMD8240L
onsemi

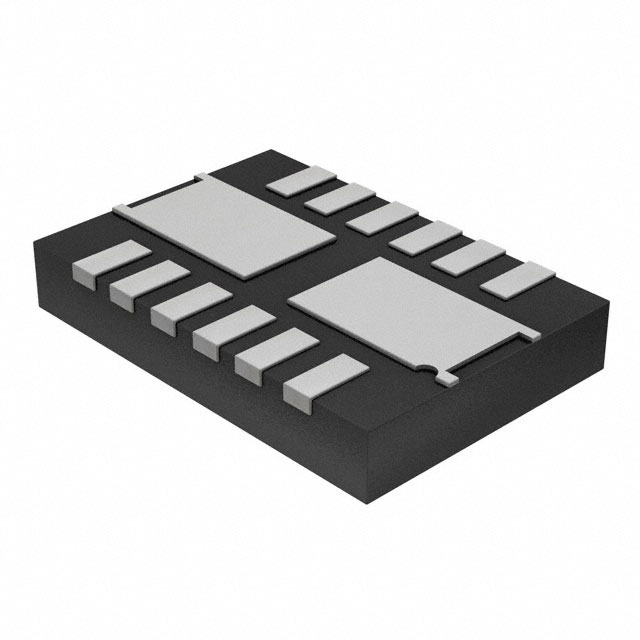

FDMD8240LET40
onsemi
FDMD8260L
onsemi
FDMD8260L
Fairchild Semiconductor
FDMD8260LET60
onsemi
FDMD8260LET60
Fairchild Semiconductor
FDMD8280
onsemi
FDMD8430
onsemi
FDMD8440L
onsemi
FDMD85100
onsemi

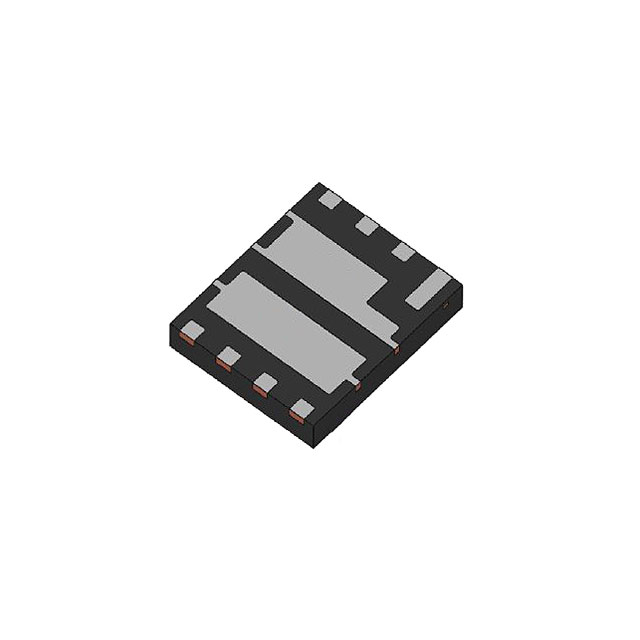

FDMD8530
onsemi
FDMD8540L
onsemi
FDMD8560L
onsemi
FDMD8580
onsemi
FDMD86100
onsemi

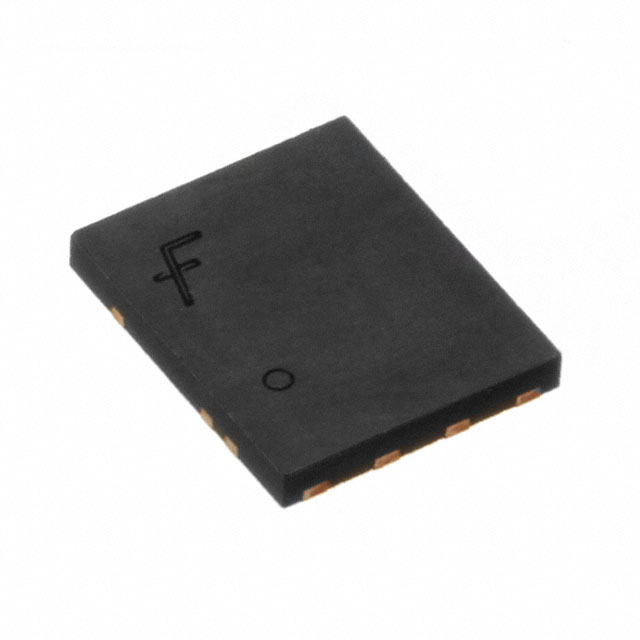

FDMD8680
