FDPF041N06BL1

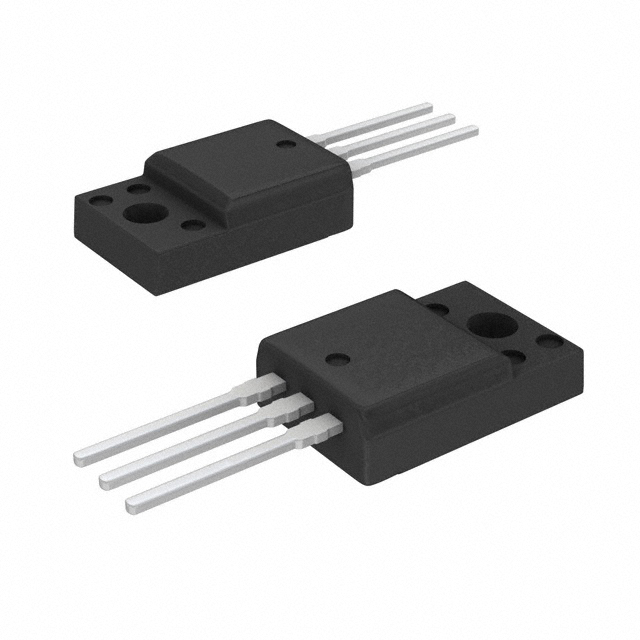

lmages are for reference only.FDPF041N06BL1
MOSFET N-CH 60V 77A TO220F
DatasheetTO-220-3 Full Pack
74,959 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 77A (Tc) 44.1W (Tc) Through Hole TO-220F-3
FDPF041N06BL1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Fairchild Semiconductor |
| Series | PowerTrench® |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 77A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.1mOhm @ 77A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5690 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 44.1W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 69 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FDPF041N06BL1 | FDPF041N06BL1-F154 | FDP020N06B-F102 | FDP023N08B |
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | Not applicable |
| Description | MOSFET N-CH 60V 77A TO220F | MOSFET N-CH 60V 77A TO220F-3 | MOSFET N-CH 60V 120A TO220-3 | 75V N-CHANNEL MOSFET |
| Series | PowerTrench® | PowerTrench® | PowerTrench® | * |
| Packaging | Tube | Tube | Tube | Bulk |
