Product CatalogPart Number
FDZ7064N
Manufacturer
Fairchild SemiconductorDescription
MOSFET N-CH 30V 13.5A 30BGA
Datasheet
DatasheetPackage
30-WFBGA
In Stock
76,828 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FDZ7064N
FDZ7064N
lmages are for reference only.Payment Methods
Delivery Services

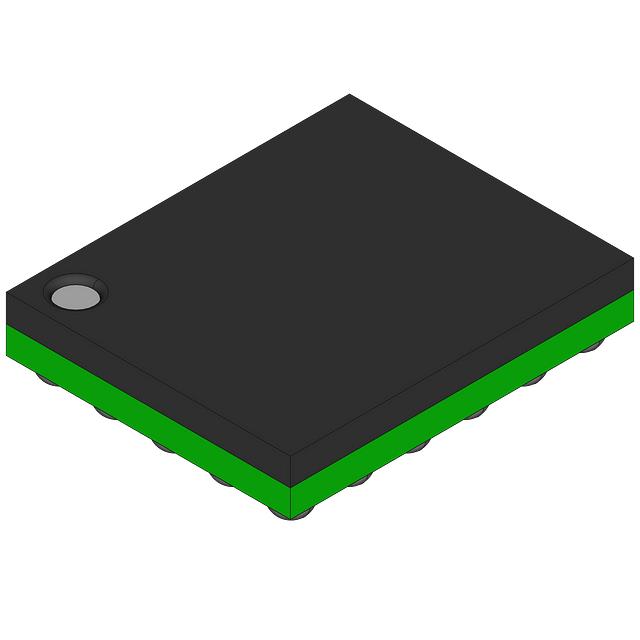

N-Channel 30 V 13.5A (Ta) 2.2W (Ta) Surface Mount 30-BGA (4x3.5)
Quick Inquiry
FDZ7064N
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Fairchild Semiconductor |
| Series | PowerTrench® |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 13.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 14.5A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 3843 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 30-BGA (4x3.5) |
| Package / Case | 30-WFBGA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | FDZ7064AS | FDZ7064N | FDZ7064S | FD70N20PWD |
| Manufacturer | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | MOSFET N-CH 30V 13.5A 30BGA | MOSFET N-CH 30V 13.5A 30BGA | N-CHANNEL POWER MOSFET | MOSFET N-CH 200V 70A TO3P |
| Series | PowerTrench® | PowerTrench® | PowerTrench® | - |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Tube |
