FGA15N120ANDTU
Manufacturer
onsemiDescription

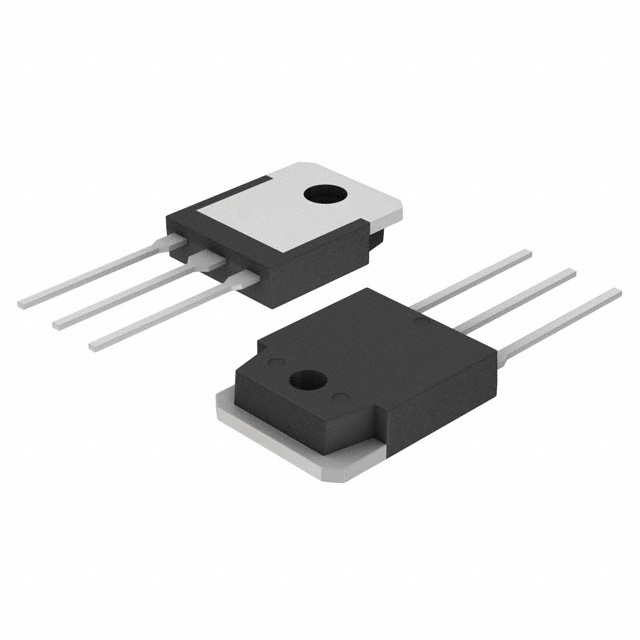

IGBT 1200V 24A 200W TO3P
Datasheet
DatasheetPackage
TO-3P-3, SC-65-3
In Stock
28,685 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FGA15N120ANDTU
FGA15N120ANDTU
lmages are for reference only.Payment Methods
Delivery Services
IGBT NPT 1200 V 24 A 200 W Through Hole TO-3PN
Quick Inquiry
FGA15N120ANDTU
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 24 A |
| Current - Collector Pulsed (Icm) | 45 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 15A |
| Power - Max | 200 W |
| Switching Energy | 3.27mJ (on), 600µJ (off) |
| Input Type | Standard |
| Gate Charge | 120 nC |
| Td (on/off) @ 25°C | 90ns/310ns |
| Test Condition | 600V, 15A, 20Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3PN |
| Reverse Recovery Time (trr) | 330 ns |
| Base Product Number | FGA15N120 |
