Product CatalogPart Number
FGA15N120ANTDTU-F109
Manufacturer
onsemiDescription
IGBT 1200V 30A 186W TO3P
Datasheet
DatasheetPackage
TO-3P-3, SC-65-3
In Stock
76,908 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FGA15N120ANTDTU-F109
FGA15N120ANTDTU-F109

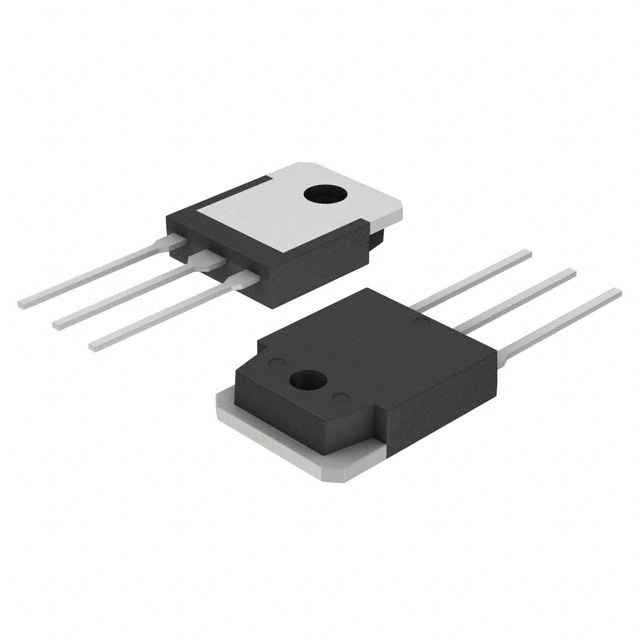

lmages are for reference only.Payment Methods
Delivery Services
IGBT NPT and Trench 1200 V 30 A 186 W Through Hole TO-3P
Quick Inquiry
FGA15N120ANTDTU-F109
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | NPT and Trench |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 45 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 15A |
| Power - Max | 186 W |
| Switching Energy | 3mJ (on), 600µJ (off) |
| Input Type | Standard |
| Gate Charge | 120 nC |
| Td (on/off) @ 25°C | 15ns/160ns |
| Test Condition | 600V, 15A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3P |
| Reverse Recovery Time (trr) | 330 ns |
| Base Product Number | FGA15N120 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | FGA15N120ANDTU | FGA15N120ANTDTU | FGA15N120FTDTU | FGA15S125P |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | |||
| Description | IGBT 1200V 24A 200W TO3P | IGBT 1200V 30A 186W TO3P | IGBT 1200V 30A 220W TO3PN | IGBT TRENCH 1250V 30A TO3P |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
