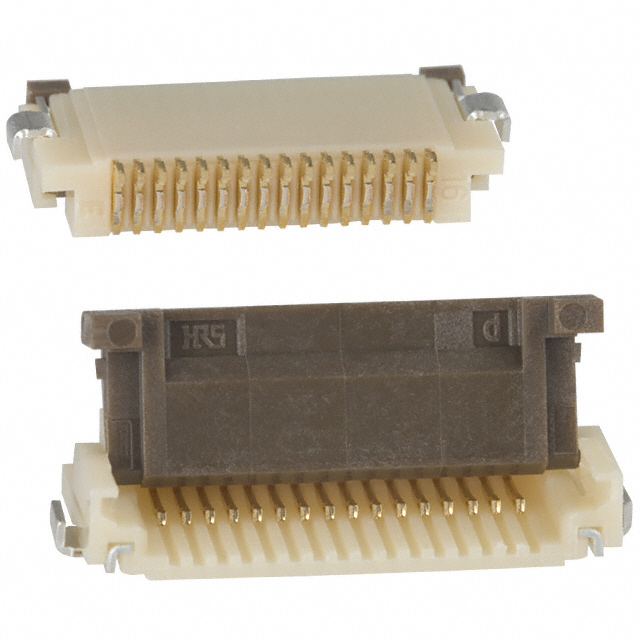

16 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
FH12-16S-0.5SH(1)(98)
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Hirose Electric Co Ltd |
| Series | FH12 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 16 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA), Nylon |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | Beige |
| Actuator Color | Brown |
| Mating Cycles | 20 |
| Base Product Number | FH12 |
| Product Attribute | .jpg "FH12-16S-0.5SH(54)") |
.jpg "FH12-16S-0.5SH(55)") |
 |
|
| Part Number | FH12-16S-0.5SH(54) | FH12-16S-0.5SH(55) | FH12-16S-0.5SH(78) | FH12-16S-0.5SH(81) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ||
| Description | CONN FFC BOTTOM 16POS 0.5MM R/A | CONN FFC BOTTOM 16POS 0.5MM R/A | CONNECTOR | CONNECTOR |
| Series | FH12 | FH12 | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bag | Bag |
