40 (19 Loaded) Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
FH12-40(19)SA-1SH(55)
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Hirose Electric Co Ltd |
| Series | FH12 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 40 (19 Loaded) |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA), Nylon |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | Beige |
| Actuator Color | Brown |
| Mating Cycles | 20 |
| Base Product Number | - |
| Product Attribute | |
 |
|
(98).jpg "FH12-40S-0.5SH(1)(98)") |

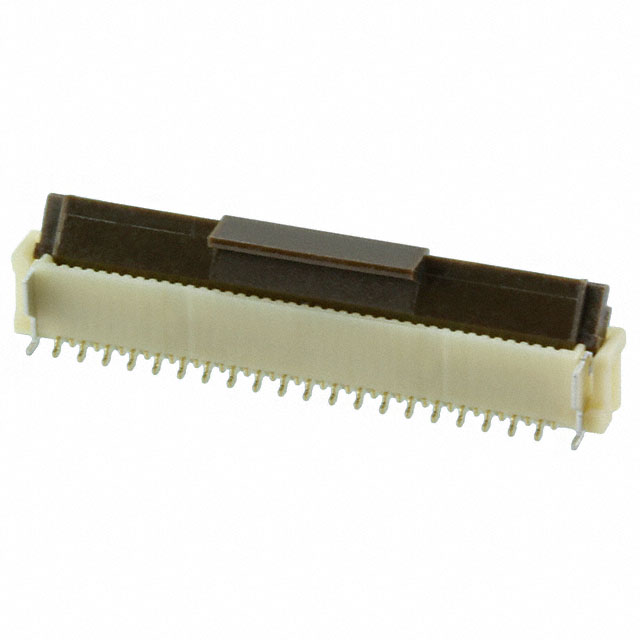

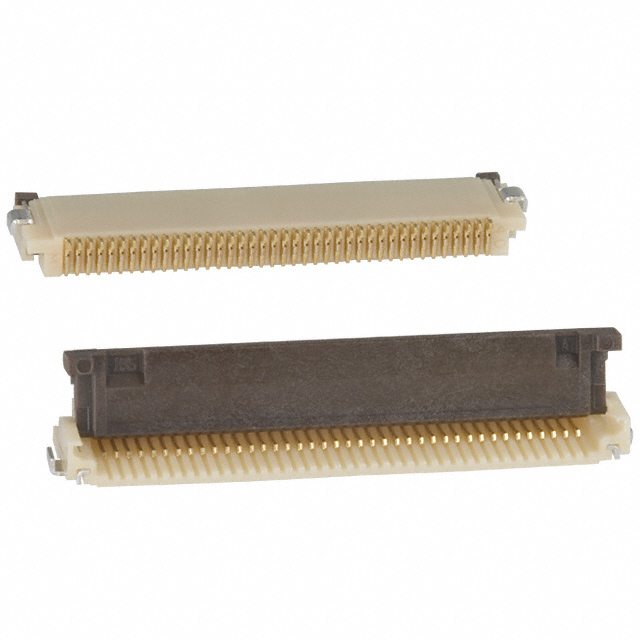

| Part Number | FH12-40(19)SA-1SH(1)(98) | FH12-40S-0.5SH | FH12-40S-0.5SH(1)(09) | FH12-40S-0.5SH(1)(98) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | RoHS non-compliant | RoHS Compliant | |
| Description | CONN FFC FPC BOTTOM 40POS 1MM RA | CONN FFC BOTTOM 40POS 0.5MM R/A | CONNECTOR | CONN FFC BOTTOM 40POS 0.5MM R/A |
| Series | FH12 | FH12 | - | FH12 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bag | Tape & Reel (TR) |
