FL2D-D0-201
lmages are for reference only.FL2D-D0-201
200H @ 10 KHZ 2 LINE COMMON MODE
DatasheetHorizontal, 4 PC Pin
58,520 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
200 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 40A DCR 1.5mOhm
FL2D-D0-201
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Mornsun America, LLC |
| Series | FL2D-D0-xxx |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 200 mH @ 10 kHz |
| Current Rating (Max) | 40A |
| DC Resistance (DCR) (Max) | 1.5mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.772" Dia (45.00mm) |
| Height (Max) | 0.945" (24.00mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

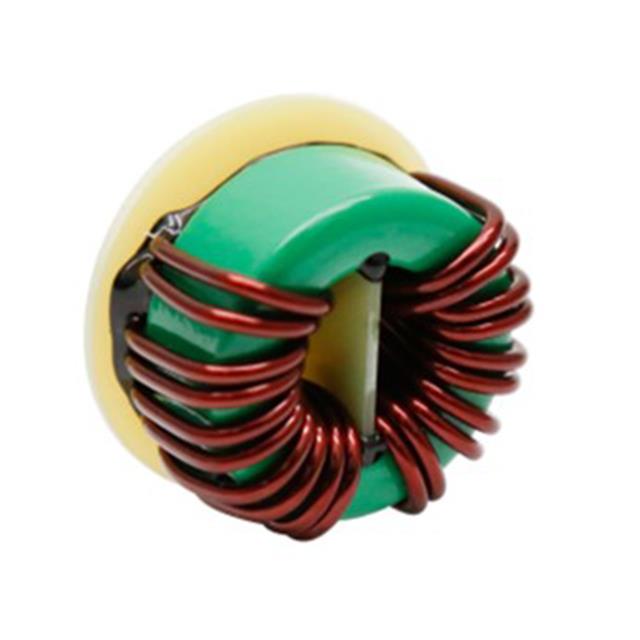

| Part Number | FL2D-D0-040 | FL2D-D0-102 | FL2D-D0-152 | FL2D-D0-561 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 4H 2 LINE COMMON MODE CHOKE THRO | 1000H @ 10 KHZ 2 LINE COMMON MOD | 1500H @ 10 KHZ 2 LINE COMMON MOD | 560H @ 10 KHZ 2 LINE COMMON MODE |
| Series | FL2D-xx-xxx | FL2D-D0-xxx | FL2D-D0-xxx | FL2D-D0-xxx |
| Packaging | Tray | Tray | Tray | Tray |
