FL2D-Z5-103

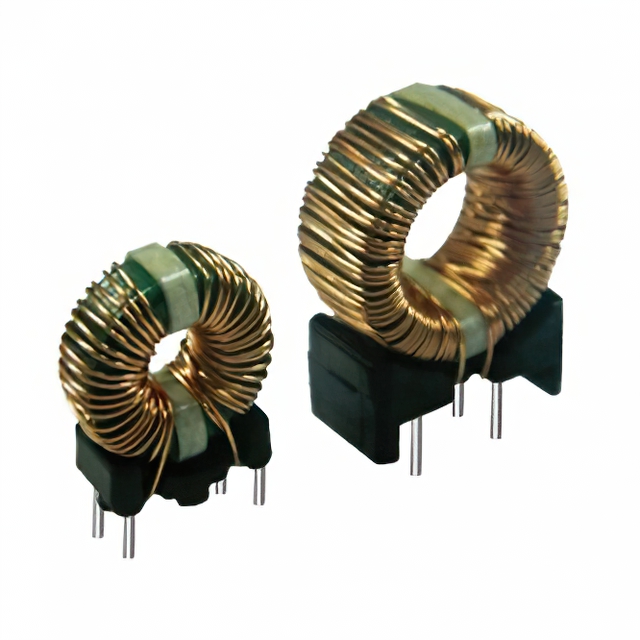

lmages are for reference only.FL2D-Z5-103
10MH 2 LINE COMMON MODE CHOKE TH
DatasheetVertical, 4 PC Pin
94,461 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 500mOhm
FL2D-Z5-103
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Mornsun America, LLC |
| Series | FL2D-xx-xxx |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 10 mH @ 1 kHz |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 500mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.669" L x 0.378" W (17.00mm x 9.60mm) |
| Height (Max) | 0.709" (18.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FL2D-Z5-153 | FL2D-Z5-223 | FL2D-10-102 | FL2D-10-102B |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 15MH 2 LINE COMMON MODE CHOKE TH | 22MH 2 LINE COMMON MODE CHOKE TH | 1MH 2 LINE COMMON MODE CHOKE THR | 1MH @ 10 KHZ 2 LINE COMMON MODE |
| Series | FL2D-xx-xxx | FL2D-xx-xxx | FL2D-xx-xxx | FL2D-10-xxxB |
| Packaging | Tray | Tray | Tray | Tray |
