FQPF12N60

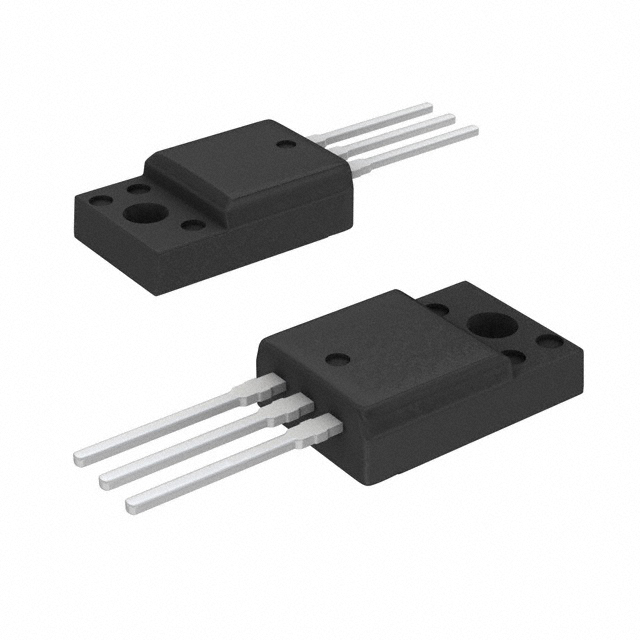

lmages are for reference only.FQPF12N60
MOSFET N-CH 600V 5.8A TO220F
DatasheetTO-220-3 Full Pack
58,492 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 5.8A (Tc) 55W (Tc) Through Hole TO-220F-3
FQPF12N60
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Fairchild Semiconductor |
| Series | QFET® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 5.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 700mOhm @ 2.9A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1900 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 55W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F-3 |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 54 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | FQPF12N60 | FQPF12N60C | FQPF12N60CT | FQPF12N60T |
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 600V 5.8A TO220F | MOSFET N-CH 600V 12A TO220F | MOSFET N-CH 600V 12A TO220F | MOSFET N-CH 600V 5.8A TO220F |
| Series | QFET® | QFET® | QFET® | QFET® |
| Packaging | Tube | Tube | Tube | Tube |
