Product CatalogPart Number
FR01KR16P-W-S
Manufacturer
NKK SwitchesDescription
SWITCH ROTARY DIP HEX 0.1A 5V
Datasheet
DatasheetPackage
-
In Stock
94,011 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
FR01KR16P-W-S
FR01KR16P-W-S

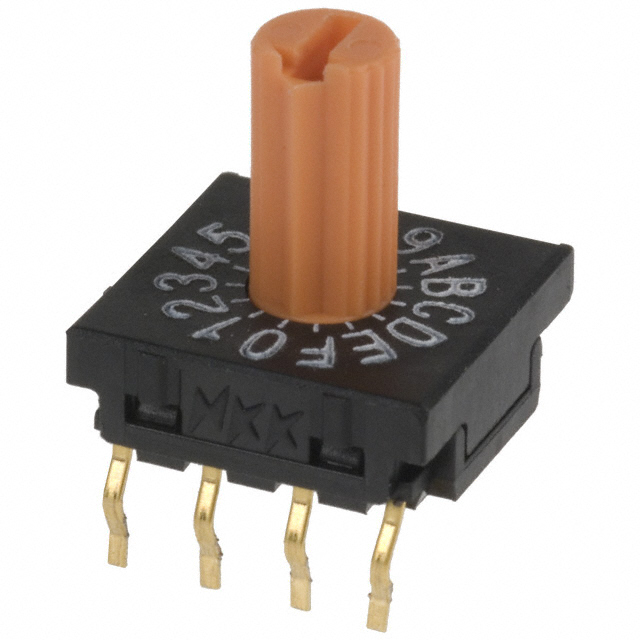

lmages are for reference only.Payment Methods
Delivery Services
Dip Switch Hexadecimal 16 Position Through Hole Rotary with Shaft Actuator 100mA 5VDC
Quick Inquiry
FR01KR16P-W-S
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | NKK Switches |
| Series | FR01 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | Hexadecimal |
| Number of Positions | 16 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 5VDC |
| Actuator Type | Rotary with Shaft |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.426" (10.82mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Body Material | Polyamide (PA), Nylon, Glass Filled |
| Length | 0.394" (10.00mm) |
| Mechanical Life | 10,000 Steps |
| Electrical Life | 10,000 Steps |
| Base Product Number | FR01KR16 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | FR01KR16P-S | FR01KR10H | FR01KR10H-06XL | FR01KR10H-06XL-S |
| Manufacturer | NKK Switches | NKK Switches | NKK Switches | NKK Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH ROTARY DIP HEX 0.1A 5V | SWITCH ROTARY DIP BCD 0.1A 5V | SWITCH ROTARY DIP BCD 0.1A 5V | SWITCH ROTARY DIP BCD 0.1A 5V |
| Series | FR01 | FR01 | FR01 | FR01 |
| Packaging | Tube | Bulk | Bulk | Tube |
