G3R40MT12J-TR
lmages are for reference only.G3R40MT12J-TR
1200V 40M TO-263-7 G3R SIC MOSFE
DatasheetTO-263-8, D2PAK (7 Leads + Tab), TO-263CA
75,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 1200 V 66A (Tc) 330W (Tc) Surface Mount TO-263-7
G3R40MT12J-TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | GeneSiC Semiconductor |
| Series | G3R™, LoRing™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 66A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 35A, 18V |
| Vgs(th) (Max) @ Id | 2.7V @ 18mA |
| Vgs (Max) | +22V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2897 pF @ 800 V |
| FET Feature | - |
| Power Dissipation (Max) | 330W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 88 nC @ 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | G3R40MT12D | G3R40MT12J | G3R40MT12K | G3R12MT12K |
| Manufacturer | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |

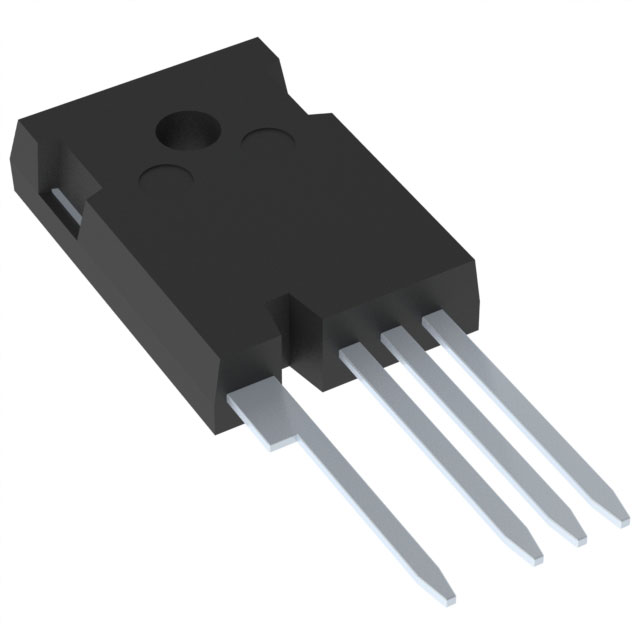

| Description | SIC MOSFET N-CH 71A TO247-3 | SIC MOSFET N-CH 75A TO263-7 | SIC MOSFET N-CH 71A TO247-4 | 1200V 12M TO-247-4 G3R SIC MOSFE |
| Series | G3R™ | G3R™ | G3R™ | - |
| Packaging | Tube | Tube | Tube | Tube |
